Short Description

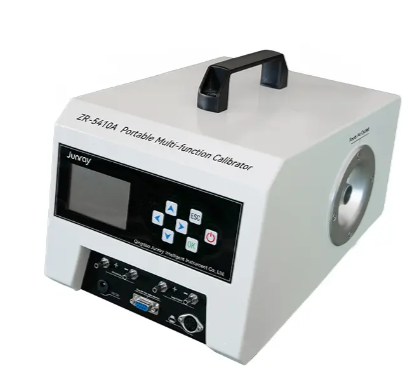

ZR-5410A is a Portable Comprehensive Calibrator for Gas, dust, smoke dust Sampler.
Specification
Soap film flowmeter: Range: (50～6000)mL/min, Resolution: 0.1mL/min, Accuracy: ±1.0%
Roots flowmeter: Range: (6～260)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%
Medium flow orifice flowmeter: Range: (40～160)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%
High flow orifice flowmeter: Range: (700～1400)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%
Atmospheric temperature: Range: (-20～50)℃, Resolution: 0.1℃, Accuracy: ±1.0℃
Micro-pressure: Range: (0～3000)Pa, Resolution: 1Pa, Accuracy: ±1%
Gauge pressure: Range: (-50～50)kPa, Resolution: 0.01kPa, Accuracy: ±2%
Atmospheric pressure: Range: (60～130)kPa, Resolution: 0.01kPa, Accuracy: ±0.5kPa
Repeatability of flowrate test: ±0.5%
Battery: ＞8h
Power supply: AC(100～240)V, 50/60Hz, DC12V 2A
Size: (L232×W334×H215)mm
Host Weight: About 9kg
Consumption: ≤10W
Introduction
ZR-5410A is a Portable Comprehensive Calibrator for Gas, dust, smoke dust Sampler. Especially for calibrating the flow rate and pressure of air sampler, particulate matter sampler and flue gas analyzer.
Applications
Calibration service companies and service industry
Measurement and control laboratories
Quality assurance
Fearture
1）High measurement accuracy
The maximum error of flowrate is ±1% (First-Glass Standard)
2）Meet the multi-type flow calibrator
Built-in roots flowmeter to calibrate flue gas analyzer, can read flow directly.
Built-in soap film flowmeter to calibrate air sampler and flue gas sampler.
Built-in orifice flowmeter was used to calibrate the particulate sampler.
3）Excellent human interaction experience
Built-in high-performance lithium battery, power supply time > 8h.
Ambient atmospheric pressure, temperature, can be measured and input.
Automatic conversion of standard flow.
LCD screen, easy to operate.
