Technical parameters
Bandwidth: DC ... 500 kHz
Sampling rate: 3 Msps
Resolution: 12 Bit
AE 200 Optical Receiver
Bandwidth: DC ... 500 kHz
Voltage range - output: 0 V ... 10 V
Optical input: Optical fiber: Ø 2.2 mm
Supply voltage: 12 V ... 16 V
Current input: ≈ 100 mA
AS 200 Optical Sensor
Bandwidth: DC ... 500 kHz
Measuring range: 0 V ... 50 V / 0 V ... 10 V DC (switchable)
Input resistance: 100 kΩ
Radiated immunity: > 100 V/m
Supply voltage: 3 V ... 16 V
Current input: ≈ 30 mA
Optical fibre length: 1 m ... 20 m
Scope of delivery
1x AE 200, Optical Receiver
1x AS 200, Optical Sensor (50 / 10) V DC
1x LWL Ø 2.2 mm 1.5 m, Optical Fiber Single 1.5 m
1x NT FRI EU, Power Supply Unit
1x A200-1 acc, Accessories
1x A200-1 case, System Case
1x Analog m, User Manual
Short description

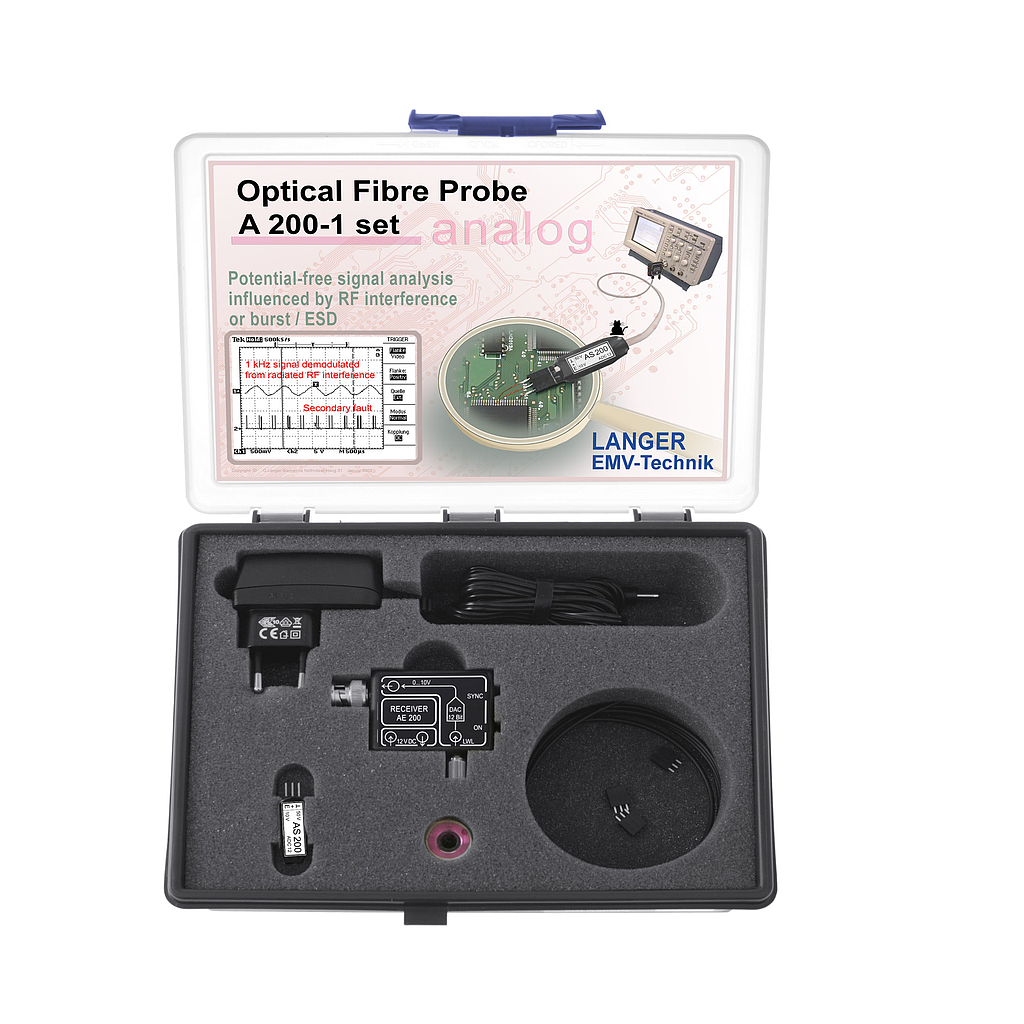

The A200-1 set consits of a sensor, which allows for oscilloscopically displaying analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured analog signals into optical signals. The optical signals are transmitted via a fiber optical cable to the optical receiver which transforms them into electrical signals. These can be seen with an oscilloscope or can be used for controlling other devices. The system is suitable for monitoring a device under test in an anechoic chamber or for EMC optimizing of hard- and software.
Datasheet
Manual
