Technical parameters
External trigger input: SMB, male, jack; 5 V TTL
Generated magnetic flux density: ca. 1 mT
Pulse parameter
Frequency: single ... 10 kHz
Trigger-pulse delay: 3 µs
Supply voltage: 6.5 V ... 15 V

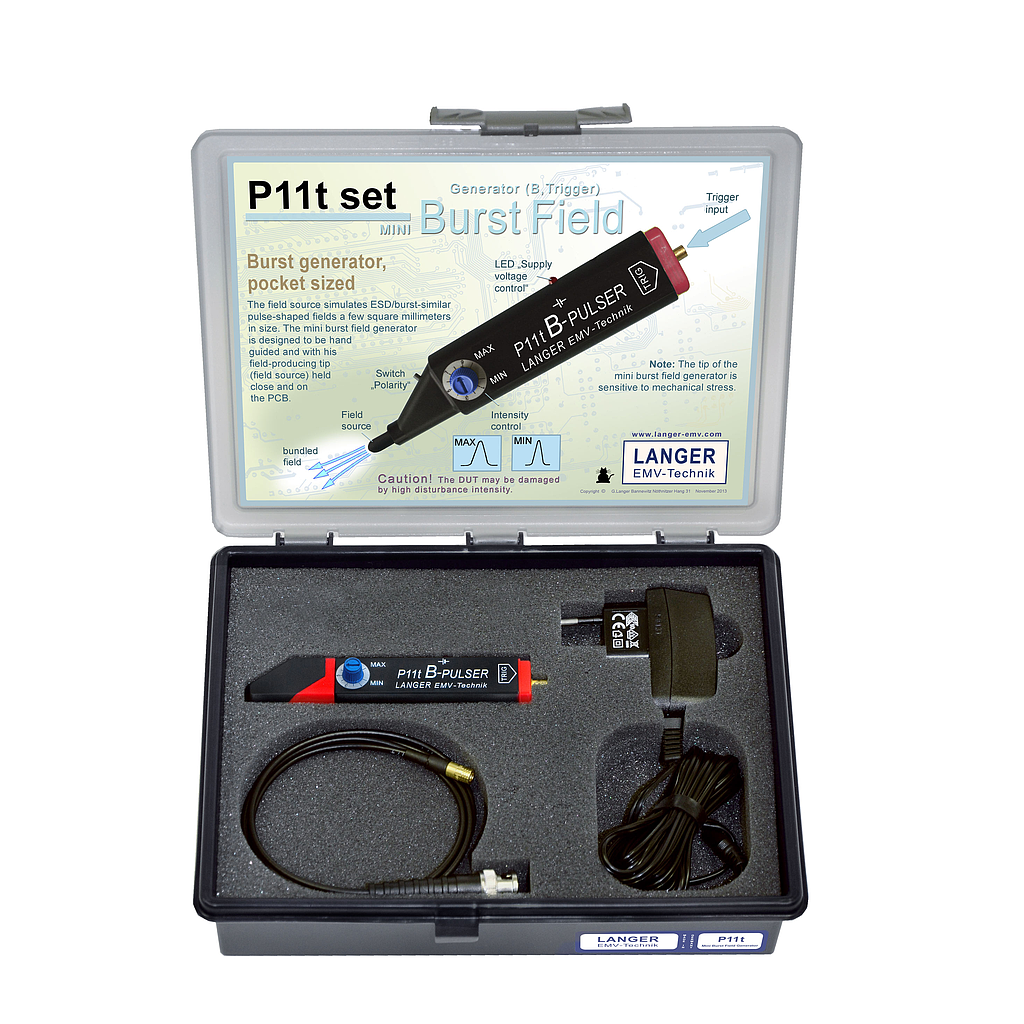

Scope of delivery
1x P11t, Mini Burst Field Generator (B, Trigger)
1x SMB-BNC 1 m, SMB-BNC Measurement Cable
1x NT FRI EU, Power Supply Unit
1x P11t case, System Case
1x P11t m, P11t Set User Manual
Short description
The P11t mini burst field generator is a development accompanying tool for interference immunity analysis. The fast transient magnetic fields, which emerge out of its tip, are used for detecting weak spots on the assemblies. The mini burst field generator has a TTL trigger input. Signals from the device under test or an external control logic can be used for synchronizing magnetic field interferences. This allows for a precise interference immunity analysis of complex circuits during certain operating conditions.
