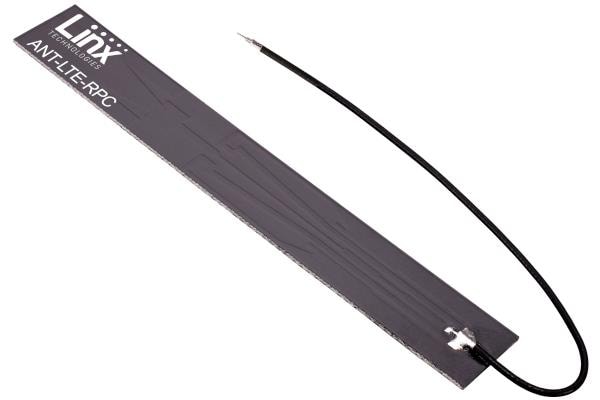

Linx Technologies - TE Connectivity ANT-LTE-RPC ແນວຮັບສະສົມສະຕິກອນ Adh PCB RPC LTE 1.13 100

Gain: 3.6 dBi, 4.9 dBi, 6.3 dBi, 5.1 dBi, 5 dBi, 4.6 dBi, 3.1 dBi

VSWR: 2.5, 1.8, 2.4, 1.8,1.4, 2.1, 4.1

Style: I-Bar

Width: 14.9 mm

Height: 0.8 mm

Length: 98.4 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Wavelength: 1/2 Wave

Application: Worldwide Cellular, Low Power Wide Area, ISM Applications, Smart Home Networking, Global Navigation

Unit Weight: 73.260 g

Cable Length: 100 mm

For Use With: LTE, GSM, UMTS, 2G/3G/4G, NB-IoT, LTE-M, GPS, GNSS, GLONASS, Beidou, COMPASS, GALILEO, LPWA, LoRaWAN

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Monopole

Number of Bands: 7 Band

Center Frequency: 600 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1.575 GHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.4 GHz, 2.5 GHz, 3.3 GHz, 3.4 GHz, 3.5 GHz, 3.6 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 3.8 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, IoT, ISM

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WLAN

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
