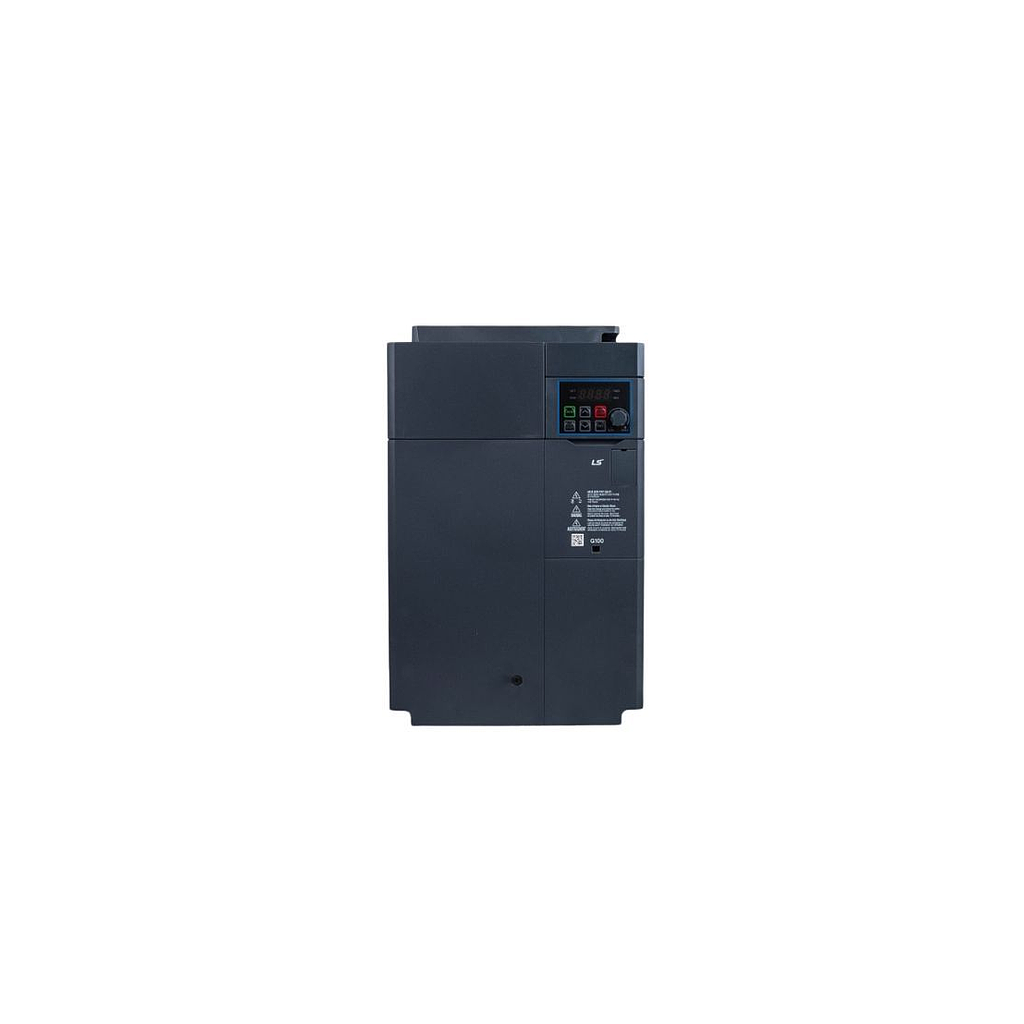

LS LSLV0150G100-2EONN ອິນເວີເຕີ (15KW, 3phase, 220V)

Input Voltage: 3-Phase 200–240VAC

Output Voltage: 3-Phase 200–240VAC

Power Output: 15kW

Input Current: 68.4A, 79.8A

Output Current: 60A, 70A

Maximum Output Frequency: 400Hz

EMC Filter: Not included

Digital Inputs: 5

Analog Inputs: 2

Pulse Input: Not available

Transistor Output: Not available

Relay Outputs: 2

Analog Output: 1

PC Connection: RJ45

Communication Protocol: RS485

Overload Capacity (Normal Load, 60s): 120%

Overload Capacity (Heavy Load, 60s): 150%

Braking Resistor: Not included

Keypad: Integrated

Cooling Fan: Integrated

Weight: 7.6kg

Dimensions (W×H×D): 220 × 345 × 187mm
