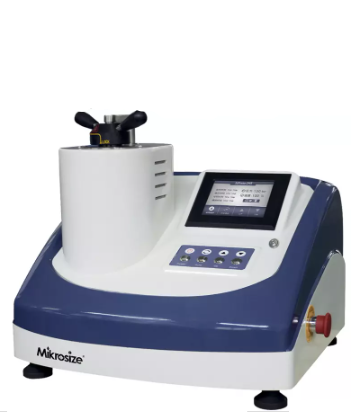

Mikrosize MPress-2HA Auto Metallographic Mounting Press (220V, 50Hz,10A)
Mould Diameter: Ф25mm, Ф30mm, Ф40mm (Choose one)
Cavity Height: 140mm, effective 85mm, mounting two samples at the same time
Heating Power
Ф25mm: 1KW
Ф30mm 1.8KW
Ф40mm 2.4KW
Pressure: 50~200bar (150bar ex-factary set, equivalent to 15Mpa, 150kgf/cm2)
Heating Temperature: 50~180℃ (120℃ ex-factary set)
Heating Time: 1~7min (4min30s ex-factary set)
Dwell Time: 30s~7min (1min ex-factary set)
Cooling Time: 1~30min (2min ex-factary set)
Total Time: 7min30s for two samples Ф30mm, 9min for two samples Ф40mm
Cooling Method: External water source cooling
Power Supply: 220V, 50Hz，10A
Machine Dimensions: 530×510×480mm
Net Weight: 60Kg
Standard Delivery
Machine Mainframe: 1 set
Middle Mould Block: 1 pc
Water Inlet Pipe: 1 pc
Water Outlet Pipe: Ф10mm: 1 pc
Water Inlet Filter: 1 pc
Hoop: 1 pc
Bakelite Powder: 500g: 1 bottle
Measuring Cup: 1 pc
Inner Hexagon Spanner: 5mm: 1 pc
Brush: 1 pc
Usage Instruction Manual: 1 copy
