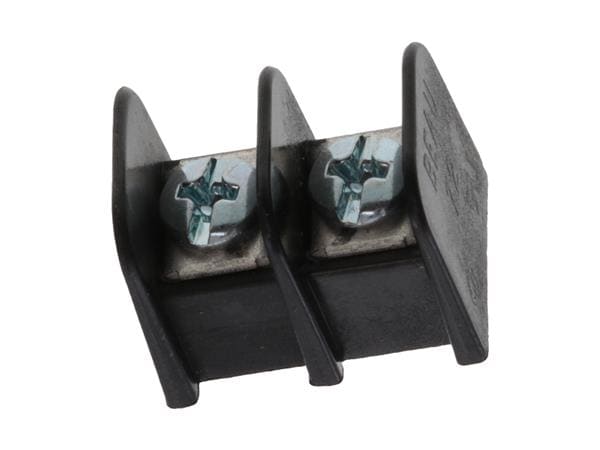

Molex 38720-6302 Beau PCB Terminal Barrier Strip SR BTS PC 2P

Color: Black

Pitch: 9.53 mm

Width: 15.7 mm

Height: 16.8 mm

Length: 21.1 mm

Unit Weight: 6 g

REACH - SVHC: Details

Current Rating: 15 A

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 300 VAC/DC

Wire Gauge Max: 14 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Contact Material: Brass

Housing Material: Polybutylene Terephthalate (PBT)

Wire Orientation: Horizontal

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
