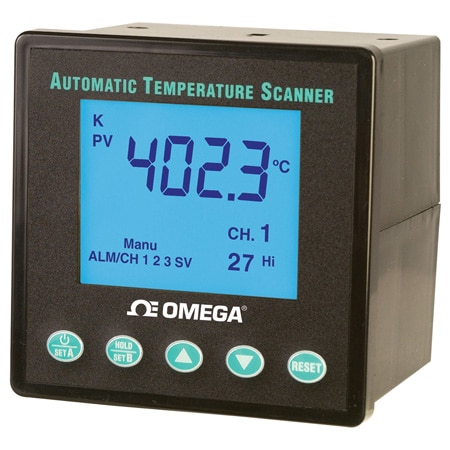

OMEGA DP1001AM 1/4 DIN 10-Channel Automatic Temperature Scanner (J, K, T, E, 1/4 DIN, 9 Vdc)
Width: 83 mm
Height: 89 mm
Length: 95 mm
Weight: 374 g
Accuracy: ± 0.15 % of reading, ± 1 °C
Input Type: Thermocouple
Resolution: 0.1 (< 1000), 1 (> 1000)
Form factor: 1/4 DIN
Display Size: 1.4 cm
Display Type: 4 Digit LCD
Memory Backup: Non-Volatile
Data Interface: RS232
Supply Voltage: 9 Vdc
Measuring Range: Type J: -50 to 1000°C (-58 to 1832°F) Type K: -50 to 1370°C (-58 to 2498°F) Type T: -120 to 400°C (-184 to 752°F) Type E: -50 to 759°C (-58 to 1382°F)
Number of Inputs: 1
Number of Relays: 1
Cutout Dimensions: 92 × 92 mm
Display Type Note: LCD, backlight, PV, SV and status indicators, 4-digit, PV 1.4 cm (0.56")
Power Consumption: 1.8 W
Supply Power Note: 9 Vdc, 200 mA (115 Vac adaptor included)
Thermocouple Type: J, K, T, E
Data Interface Note: RS232 Transmit Only, 2 wire configuration, Tansmit & Ground connections, One way communications only
Temperature Sensor Type: N/A
Storage Temperature, Max: 50 °C
Storage Temperature, Min: 0 °C
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
Material Construction Option: N/A
Retransmission/Analog Output: SPDT Relay
Retransmission/Analog Output Note: 5 A SPDT relay @ 250 Vac resistive
