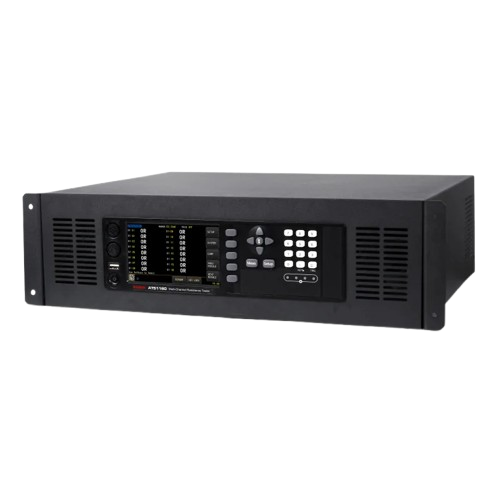

ONMEAS AT51160 ເຄື່ອງທົດສອບຄວາມຕ້ານທານຕ່ຳ DC (160 chs; 1μΩ ~ 200kΩ)
Number of Channels: 160 channels (10×16 parallel scanning measurement)
Measurement Parameters: DC Low Resistance
Basic Accuracy: 0.05%
Measurement Range: 1μΩ to 200kΩ
Signal Source: Maximum Current: 1μA to 1A
Current Mode: Auto
Range: Auto Range, Manual Range, Nominal Range
Measurement Speed: Slow: 3.5s/160 channels; Medium: 1.9s/160 channels; Fast: 1.1s/160 channels
Display Results: Direct Reading Display
Maximum Reading: 22,000
Calibration: Full-range short-circuit zeroing
Comparator: Trigger
Trigger Mode: Internal Trigger, External Trigger
Test Terminals: Four-terminal Test
Contact Check Function: Method: 4-terminal. Display: CC.HL: Both HIGH/LOW contacts poor; CC.H: HIGH contact poor; CC.L: LOW contact poor
Instrument Dimensions: Approx. 485 x 129 x 371 mm (W×H×D)
Net Weight: Approx. 14 kg
Power Requirements: Voltage: 198VAC to 240VAC, Frequency: 50Hz, Power: 20VA
Interface: RS-232C/485 Interface (SCPI Command Set)/MODBUS; LAN Interface
