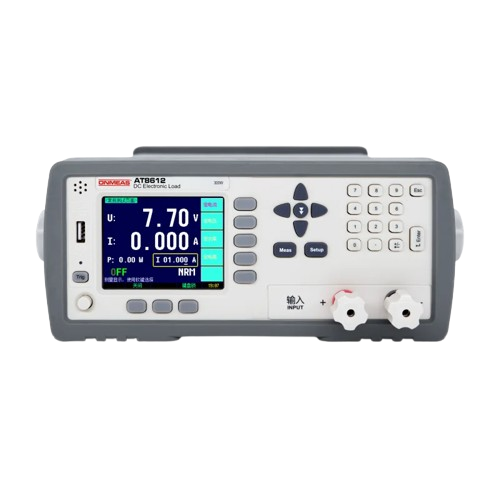

ONMEAS AT8612 ໂຫຼດເອເລັກໂຕຣນິກ DC (300W / 300V / 30A)
Rated Input: 300W / 300V / 30A
Constant Current (CC):
0–3A: Resolution: 0.0001A | Accuracy: 0.1%
0–30A: Resolution: 0.001A | Accuracy: 0.2%
Constant Voltage (CV):
0–18V: Resolution: 0.001V | Accuracy: 0.05%
0–150V: Resolution: 0.01V | Accuracy: 0.05%
Constant Power (CP):
0–100W: Resolution: 0.001W | Accuracy: 1%
100W: Resolution: 0.01W | Accuracy: 1%
Constant Resistance (CR):
0.1Ω–99Ω: Resolution: 0.01Ω | Accuracy: 1%
100Ω–4kΩ: Resolution: 0.1Ω | Accuracy: 1%
Measurement Accuracy: Ammeter Accuracy: 0.1% | Voltmeter Accuracy: 0.05%
Short Circuit Test: Current approx. 30A; Internal Resistance approx. 40mΩ
Test Speed: Fast: 10 times/sec | Medium: 5 times/sec | Slow: 3 times/sec
Dynamic Testing: 0.1Hz – 1kHz
Dynamic List Test: 10 files, up to 100 steps / file
Comprehensive Test: 10 files, up to 20 steps / file
Battery Capacity Test: Max duration up to 1000 hours; displays capacity up to 999.99AH along with discharge time
Interfaces: Remote Sensing Port, External Trigger Input, RS232 Interface (Optional: RS485)
Protection: 5-Level Security Protection
Other Features: LCD Display, 4W Remote Sensing, Intelligent Fan Cooling
Standard Accessories: ATL509 Test Cable; ATL108 RS232 Communication Cable; ATS861X Data Acquisition Software (V2)
Power Requirements: Voltage: 198V–252V AC; Frequency: 48.5Hz–52.5Hz; Power: 15VA
Dimensions: 264 mm (W) × 107 mm (H) × 350 mm (D)
Weight: Approx. 5 kg
