Coupling capacitor: 100~1000pF
Insulation ability: >5KV
Dimension: 1050*140*110

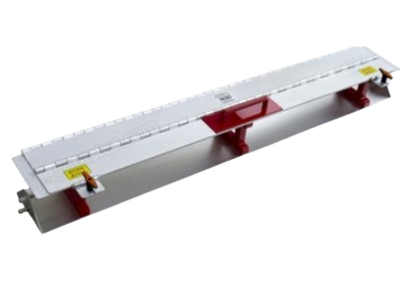

Capacitive coupling clamp is a support equipment for EFT/B generator. It couples fast transient bursts onto the line under test without making a direct electrical connection to any port, cable shield, or other part of the equipment under test. The cable under test (signal line) is placed between the upper and lower coupling plates of the coupling clamp, the coupling clamp itself should be closed as tightly as possible to provide the maximum coupling capacitance between the cable and the coupling clamp.
