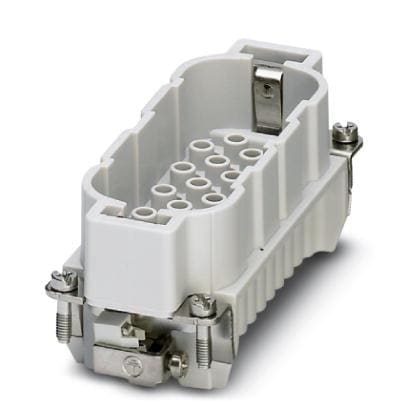

PHOENIX CONTACT 1584415 Inserts HC-D 40-I-CT-M

Unit Weight: 49.100 g

For Use With: Size B16 Inserts

Housing Color: Gray

Contact Gender: Pin (Male)

Current Rating: 10 A

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 4 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 26 AWG to 14 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Housing / Hood Size: D40

Number of Positions: 40 Position + PE

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
