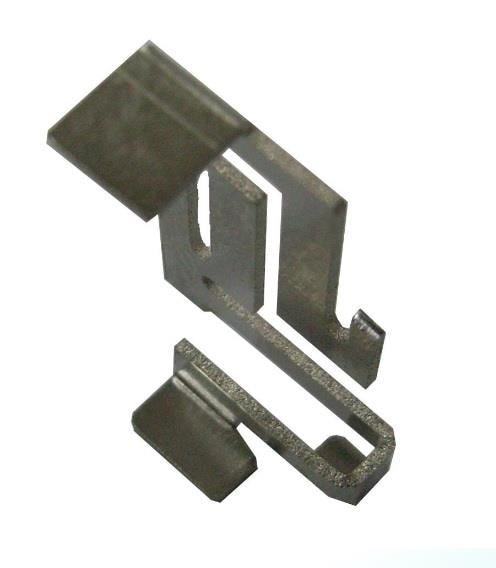

Pulse Electronics W3715 ແນວຮັບສະສົມສະເສີມ 2.4/5GHz Dualband WIFI SMT Ant

Gain: 3.7 dBi, 5.5 dBi

VSWR: 2:1

Style: Metal

Width: 7 mm

Height: 16 mm

Length: 11 mm

Impedance: 50 Ohms

Technology: WiFi Dual Band

Application: M2M and IoT Devices, WiFi, ISM, Portable Electronics, Security

Polarization: Horizontal

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Stamped

Maximum Frequency: 6 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM, U-NII

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), DSRC

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
