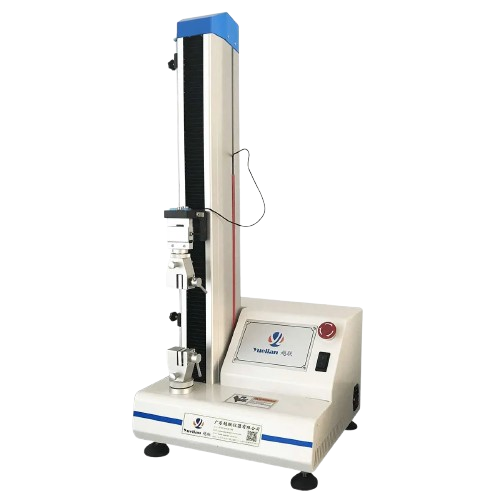

PW Instruments PW-TMP-T02 ເຄື່ອງທົດສອບປະສິດທິພາບການຫຸ້ມຫໍ່ຢາ (0.05～1000 mm/min)

Test force range : 30N/50N/100N /200N /500N/1000N

Accuracy class : 0.1 level

Test speed : 0.05～1000 mm/min(Infinitely variable speed, process return)

Maximum stroke : 600mm

Number of samples: 1PCS

Sample width : 30mm（Standard）;50mm（Optional）

Chuck clamping form : Manual clamping（Standard）;Pneumatic clamping（Optional）

Power supply : AC 220V 50Hz / AC 120V 60 Hz

Dimensions: 500mm (L)×500 mm (W)×1100mm (H)

Approximate net weight: 60kg

PRODUCTS DETAILS

PW-TMP-T02 medical packaging performance tester is used in ampoules, aluminum-plastic composite caps, butyl rubber stoppers, films, polypropylene composite caps, medicinal aluminum foil, composite films, pen-type syringes, PVC rigid tablets, and pre-filling For pharmaceutical packaging materials such as syringes and injection needles, conduct tensile and compression tear tests such as breaking force, sliding property, body tightness, opening force, puncture force, heat sealing strength, tensile strength, peel strength, etc., also known as medical packaging tear strength Tester, digital display electronic tear tester, etc.

Test Principle

The sample is clamped between the two chucks of the fixture, and the two chucks move relative to each other. By collecting the force value change of the force sensor and the displacement change of the displacement sensor, various mechanical properties of the sample are calculated.

Features

The 0.1-level precision force sensor is equipped with imported high-precision and high-speed sampling chips to ensure the accuracy, real-time and repeatability of test results

The transmission system adopts the design scheme of servo motor equipped with high-precision screw, which makes the system run more smoothly

Infinitely variable speed from 0.05 to 1000 mm/min to meet the test requirements of users under different test conditions;

Equipped with advanced displacement control system, the displacement accuracy can reach 0.1mm;5. The entire system meets GMP requirements

It has abundant applications, equipped with a variety of sample fixtures for users to choose, which can meet the test requirements of more than 1000 materials

Intelligent configuration such as limit protection, overload protection, automatic return and power-down memory, effectively guarantee the safety of users’ operation

The tablet is equipped with a newly designed control software to provide users with a comfortable and smooth operating experience, with functions such as test control, curve display, historical test query, data analysis and report processing

User multi-level authority management, which is convenient for laboratory management personnel to regulate the use of equipment;

The software realizes data traceability, and realizes functions such as multi-level authority management, audit trail, and electronic signature

The company provides professional customized services to meet the individual needs of users in fixtures and software

The key components are imported from world-renowned brands to ensure the accuracy and stability of the system

The software is compatible with tablets, notebooks, industrial computers and desktop computers, providing great convenience for users to control equipment.

Configuration

Standard configuration: host, tablet, professional software, general fixture.
