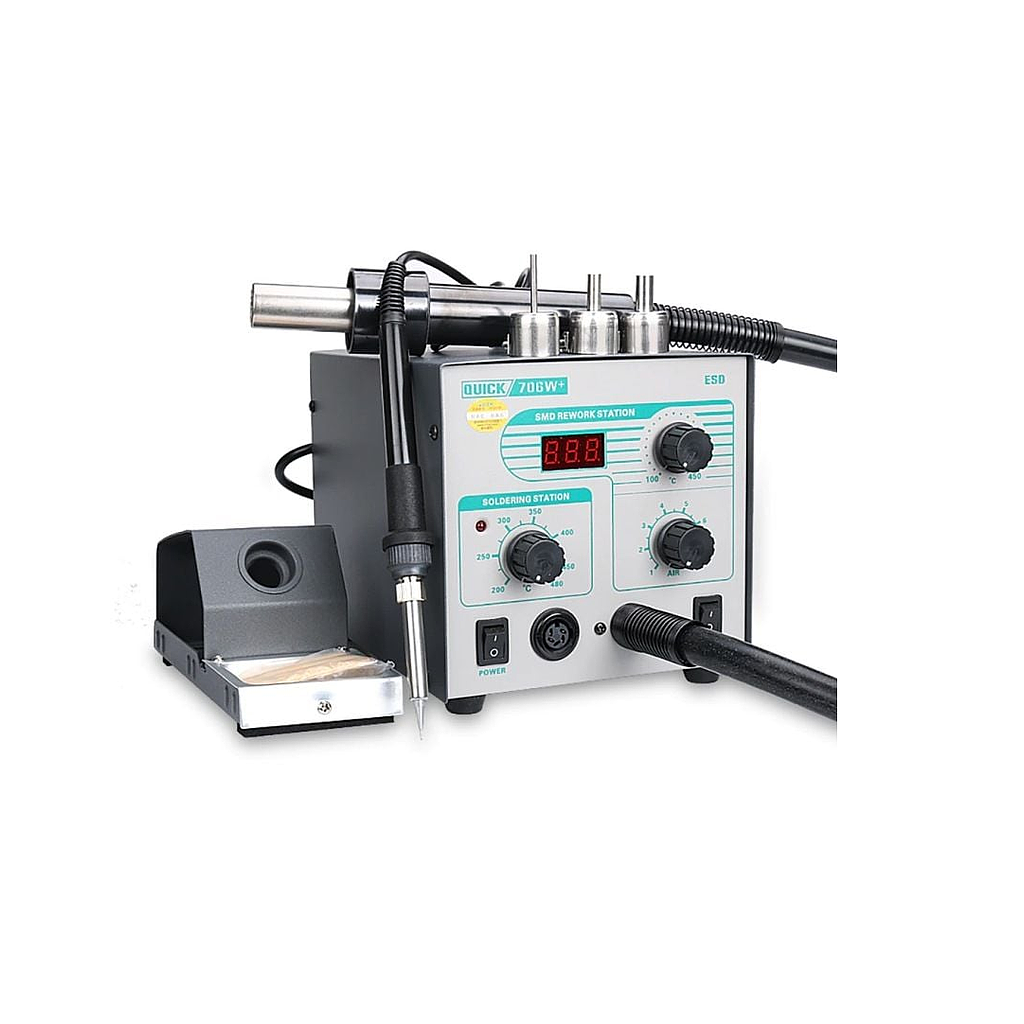

QUICK 706W+ ສະຖານີສ້ອມແປງອາກາດຮ້ອນ

Total Power: 720W

Power Supply: AC 220V (50/60Hz)

Application: Electronics repair, SMD component rework, BGA rework, PCB repair, etc.

Hot Air Unit

Power: 580W

Temperature: 100°C – 480°C (adjustable)

Airflow: 24 L/min (max)

Air pump: Diaphragm pump

Noise level: < 45 dB

Features:

Temperature and airflow adjustable via rotary knobs

Comes with multiple nozzles (typically 3 sizes: 5 mm, 8 mm, 10 mm)

Automatic cooling system after shutdown to protect components

Soldering Iron Unit

Power: 50W

Temperature: 200°C – 480°C (adjustable)

Tip voltage: < 2 mV

Insulation resistance: > 100 MΩ

Tip type: 900M series (compatible with many common soldering tips)

Features:

Heat-insulated, ESD-safe handle

Independent temperature control separate from hot air system

Control System

Display: 3-digit LED (basic version, knob adjustment)

Temperature sensor: Yes, ensures stable temperature (±5°C)

Energy-saving mode: Automatically reduces temperature when idle (for soldering iron)

Dimensions & Weight

Dimensions: 310 × 300 × 230 mm

Weight: 5 kg
