Mechanical structure:
Glass table size (mm): 1208 × 885
X,Y-axis Travel (mm): 800×1000
X,Y-axis Max. speed (mm/s): 300
Z-axis Travel (mm): 200
Dimension (m): 2.17×2.38×1.56
Weight (kg): 3260
Optical system:
Illumination: Surface lighting: LED surface ring lighting; Bottom lighting: LED new linear lighting
Linear scale resolution: 0.5um
X, Y-axis indication error: (3＋L/200)μm
Laser flatness measurement: Repeatability: 3μm (with optional configuration of laser shifter)
Product brief:

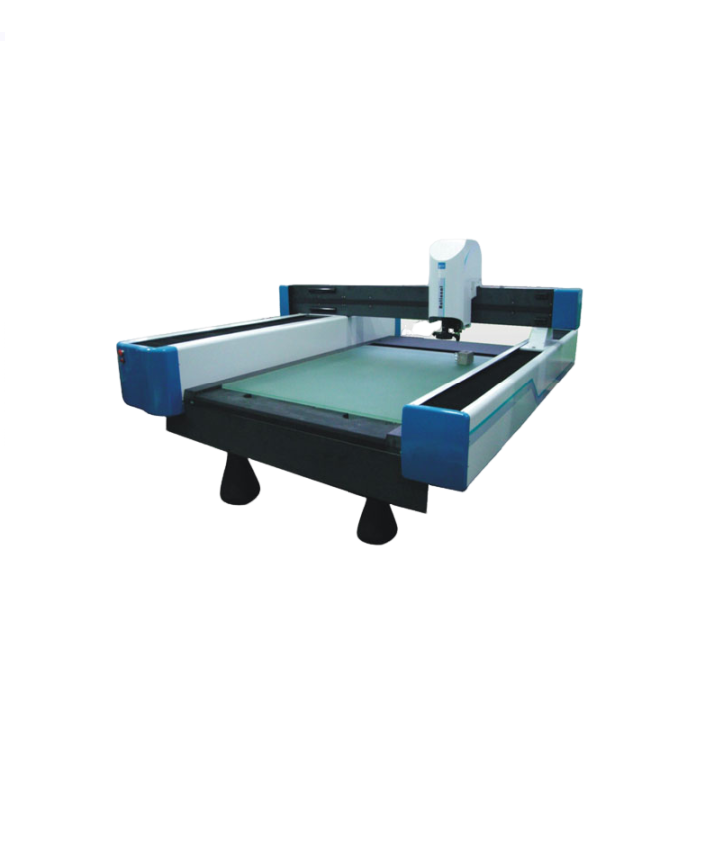

The series, Long Stroke CNC Video Measuring Systems (Air floatation), adopt air floatation technology and servo control technology with combination of our own automatic measuring software, QMS3D, making it possible to measure workpiece in large quantity efficiently and accurately. They are suitable for parts inspection and QC. It’s widely used in machinery, electronics, automobile, hardware, plastic and tooling, etc.
Features:
1. Long stroke contributes to wide measuring range.
2. The self-developed measuring software QMS3D has meet various requirements of customers.
3. With features like auto focusing, auto edge finding, powerful programming, and auto measuring, etc.
4. Adopts subpixel subdivision technique to improve resolving power of boundary.
5. Equipped with joystick, which is also able to be programmed by software.
6. SPC data processing system and large quantities of jig measurement.
7. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.；
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
9. Perfect straightness granite, ideal flatness grass, and frictionless and wearproof granite guide rail.
10. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
