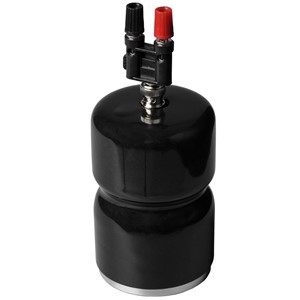

SCS 770007 Concentric Ring Probe (6.70 lb)
Gross Weight: 6.70 lb
*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.
Dimensions (with BNC / banana jack adapter): 2.8" Dia. x 6.5" H (71 mm x 165 mm)
Outer Probe Diameter: 2.5" (63 mm)
Inner Probe Diameter: 1.2" (30 mm)
Weight: 5.8 lbs. (2.6 kg)
Insulation Resistance Between Probes: >1 x 1012 ohms @ 500V
Probe Resistance of Carbon Pads: <100 ohms at low test voltage
Country of Origin: United Kingdom
Concentric Ring Probe for Surface Resistance Meters
Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
Spring Loaded, Self-Aligning Center Electrode
Maintains consistent contact between the fixture’s conductive rings and the material under test
Compatible with the Following SCS Surface Resistance Meters
770760 Resistance Pro Meter Kit
701 Analog Surface Resistance Megohmmeter Kit
SRMETER2 Surface Resistance Meter
Made in the United Kingdom
This item is stocked in Chino, CA
