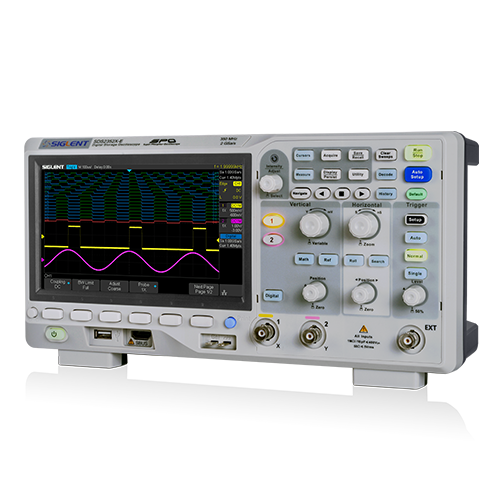

Bandwidth: 200MHz
Sampling rate (Max.): 2 GSa/s
Channels: 2+EXT
Memory depth (Max.):
- 14Mpts/CH (not interleave mode)
- 28Mpts/CH (interleave mode)
Waveform capture rate (Max.): 110.000wfm/s (normal mode), 400.000wfm/s (sequence mode)
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Serial trigger and decoder (Standard): IIC, SPI, UART, CAN, LIN
16 Digital channels (option): Maximum waveform capture rate up to 1GSa/s, Record length up to 14 Mpts/CH
I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe PP215
Display: 7 inch TFT–LCD (800x480 pixels)
Weight: 2.6Kg
Standard accessories
USB cable: 1
Quick Start: 1
Passive probe: 2
Certification of Calibration: 1
Power cord: 1
Optional accessories
16 Channels MSO Software: SDS2000X-E-16LA
16 Channels Logic Analyzer: SLA1016
AWG Software: SDS2000X-E-FG
USB Isolated AWG Module Hardware: SAG1021I
WIFI Software: SDS2000X-E-WIFI
USB WIFI Adapter: TL_WN725N
Isolated Front End: ISFE
STB Demo Source: STB-3
High Voltage Probe: HPB4010
Current Probes: CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
Differential Probes: DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
Rack Mount: SDS1X-E-RMK
