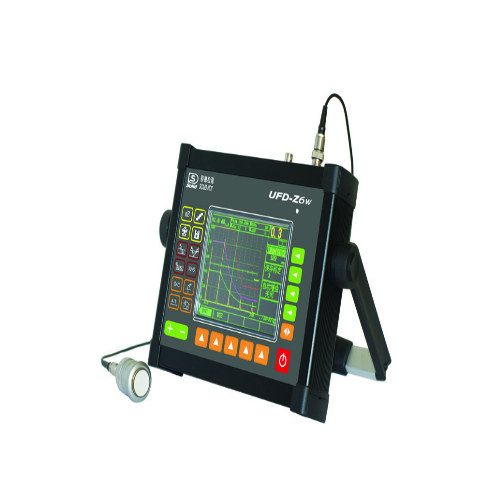

Gauge type: UFD-Z6W
Measuring Range: 1.0~15000mm
Resolution: 0.01mm(<100mm) 1mm(>100mm)
Velocity: 500~2000m/s 20fixed velocities
Delay: -20~3400us /resolution : 0.1us
Probe Delay: 0~99us /resolution: 0.01us
Auto Calibration: Velocity Calibration &Probe Delay Calibration
Linear Error:
+ Horizontal errors: 0.1%
+ Vertical error: ≤3%
Dynamic Range: ≥36dB
Sensitivity: ≥64dB 200mmΦ2 flat-bottomed hole
Dimension(mm): 240x180 x 50mm
Weight: 1.9Kg (induding battery pack)
Working Environment:
+ Temperature: -20°C~70°C
+ Humidity: 5%~90%
Accessories:
+ Main engine: 1
+ Straight / angle probe: 2
+ Probe line: 1
+ Chargers: 1
+ Battery: 1
+ Instruction: 1
+ Box: 1
+ Coupling paste: 1
Optional:
+ Printer: TP serial printer 3 data report: screen shot wave thickness value
+ Communication: USB
