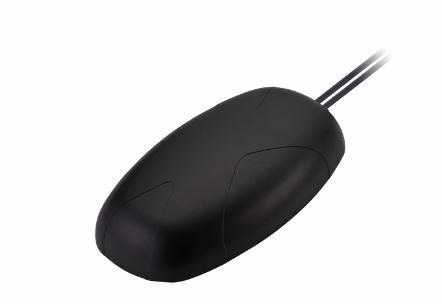

Taoglas MA351.A.BI.001 MIMO Steedan Low Profile 2in1 Magnetic Mount Combination Antenna with 2*5G/4G MIMO

Gain: 5.7 dBi, 6.9 dBi

Style: Oval

Width: 144.38 mm

Height: 47.8 mm

Length: 247 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 3 M TGC200 x 2

Application: Next Generation OEM Automotive Connectivity, Multimedia Navigation, Telematics Systems, Fleet Management Applications, Real-time HD Video Streaming, FirstNet Responder Routers

Cable Length: 3 m

Polarization: Linear

Power Rating: 10 W

Mounting Style: Magnetic Mount

Electrical Type: Active

Number of Bands: 8 Band

Center Frequency: 657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5200 MHz, 5800 MHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 5.925 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
