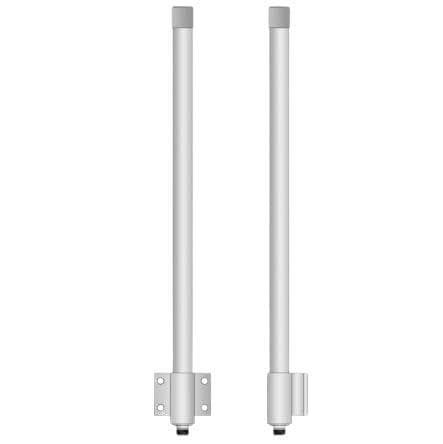

Taoglas OMB.410.B03F21 ແນວຮັບສະສົມສະບັບປະຕິບັດ N TYPE ພາຍນອກ ແນວຮັບສະສົມອອມນິ

Width: 70 mm

Length: 524 mm

Bandwidth: 3 MHz,

IP Rating: IP65

Impedance: 50 Ohms

Application: Smart Grid, Smart Metering, Industrial Monitoring, Environmental Monitoring, Remote Asset Monitoring, Mesh Network Application

Polarization: Linear

Power Rating: 50 W

Mounting Style: Bracket Mount

Number of Bands: 2 Band

Center Frequency: 411.5 MHz, 421.5 MHz

Mechanical Style: Collinear

Maximum Frequency: 423 MHz

Minimum Frequency: 410 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: N Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
