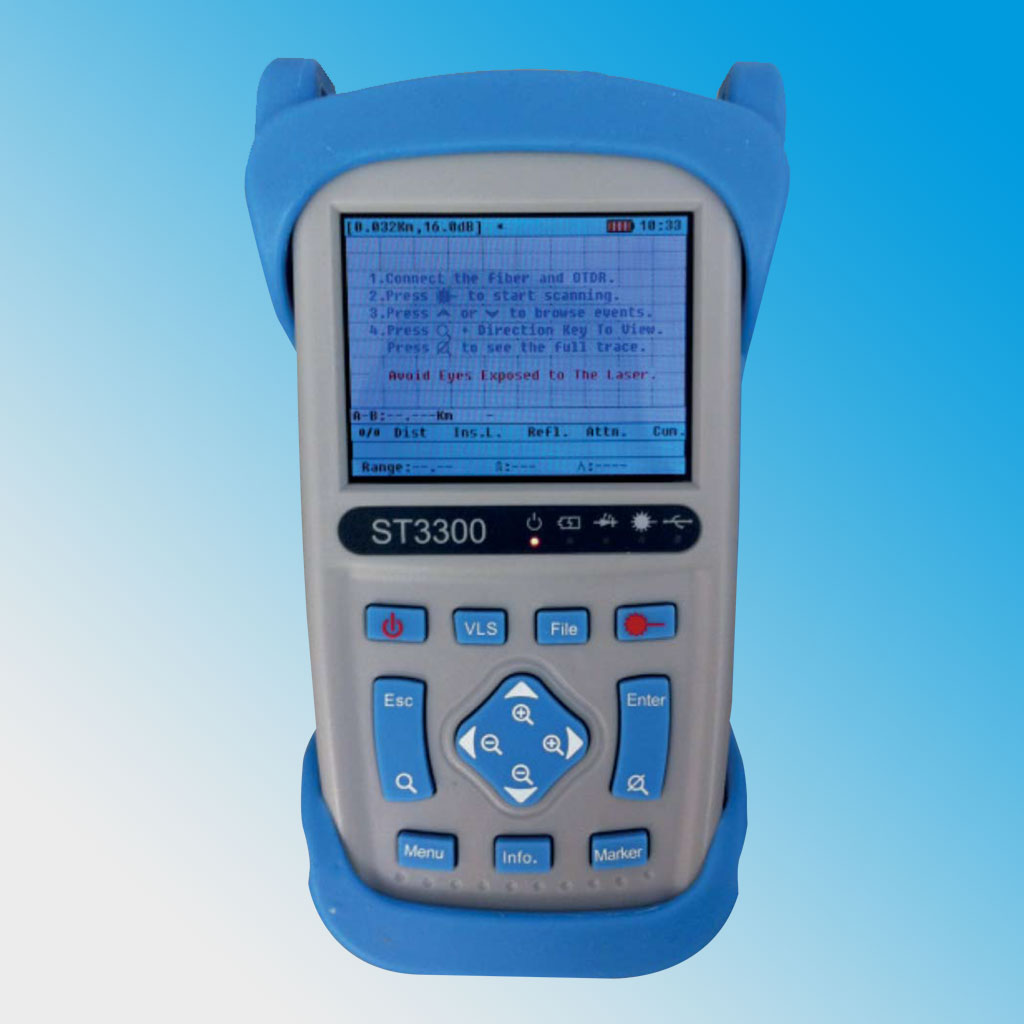

Tinsley CuteOTDR-3300C OTDR Optical Time Domain Reflectometer (1310/1550, 32/30dB)
Wavelength: 1310/1550
Sensing Fiber: Single mode fibers
Dynamic Range (dB): 32/30
Pulse Duration(ns): 10/20/50/100/200/500 /1us/2us/5us/10us/20us
Even Dead Zone(m): ＜1.8m
Attenuation Dead Zone: <10m
Attenuation Detect Accuracy(dB/dB): ±0.05
Loss Resolution(dB): 0.01
Sampling Resolution(m): 0.16-5 (0.16 0.32 0.64 1.28 2.56 5.08）
Distance Measure Accuracy(m): ±(1m+5x0.005%xdistance+sampling space)
Max Measuring Distance (km): 1-160Km
Data Storage: ＞10000 records
Storage Format: .sor bellcore file
Averaging Time: 5s,15s,30s,1min,2min,3min
Dimensions(HxWxT): 210*112*67mm
Weight: 1kg
Temperature: Operating Temperature 0°C -50°C Storage Temperature -20°C -60°C
Relative Humidity: 0%-95%(non-condensing)
Battery life: ＞10 hours
Interface Type :
Connector: FC(ST/SC Interchangeable)/PC
Connectivity: USB/SD card
Matching Function Modules:
CVisible Fault Locator: Wavelength: 650nm; Farthest distance test:5Km
Stable light Source Module: Wavelength(±20):The work of OTDR with wavelength
Notes:
1)The dynamic range is SNR =1 the maximum pulse width within averaging time of 3 minutes
2)Conditions for dead zone measurement: reflection strength beleow-45dB, Event Dead Zone with 10ns pulses width measurement, Attention Dead Zone 50ns pulse width measurement.
3)Do not include due to refraction caused by the uncertainty.
4)Stable source and CuteOTDR sharing the same light port and Cute OTDR work wavelength consistent.
