- Tesla Meter:
Measuring Range: 0 ～2000 mT
Minimum Resolution: 10 μT
Uncertainty Of Measurement (k= 2 ): 0.5%
- Rotary Motor (W axis):
Subdivision: 50000 / 360°
Concentricity: 0.05mm

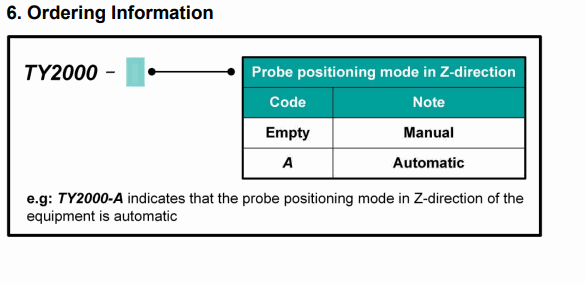

TY2000-Z (Z axis) (optional): Adjustable Stroke: 200mm/ Adjustable Fineness: 1 mm
- Specimens Specifications:
Chuck Clamping Range: Internal diameter: Φ2 mm~70mm; External diameter: Φ24 mm~64mm
Diameter: ≤Φ 350 mm
Quality: ≤3 kg
- General Specifications:
Power Supply: AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz
Temperature Performance:
Working Temperature：0°C～40°C；
Storage Temperature：-20°C～70°C
Humidity Performance:
Working Humidity：40%～80% R•H，No condensation
Store Humidity：< 95% R•H，No condensation
Size: 500 mm (W) × 340 mm (D) × 620 mm (H)
1. Summary
TY2000 is a special equipment for measuring the magnetic field distribution of permanent magnetmaterials and motor rotor surface. It can measure surface magnetic parameters and drawsurfacemagnetic curve of ring specimens, including X-Y rectangular magnetic field distributiondiagram,polar coordinate magnetic field distribution diagram, three-dimensional magnetic fielddistributiondiagram, etc
2. Applications
- Measuring Ring Specimens : It can test cylindrical permanent magnets, multi-polemagneticrings, magnetic tiles, small motor rotors, etc.
- Surface Magnetic Parameters: pole number, polarity, peak value of magnetic pole, angle, area,width, half-width height, magnetization angle; The results of each table magnetic parameterinclude maximum value, minimum value, average value, standard deviation , etc.
- Surface Magnetic Curve: X-Y rectangular magnetic field distribution diagram, polar coordinatemagnetic field distribution diagram, three-dimensional magnetic field distribution diagram, etc.
