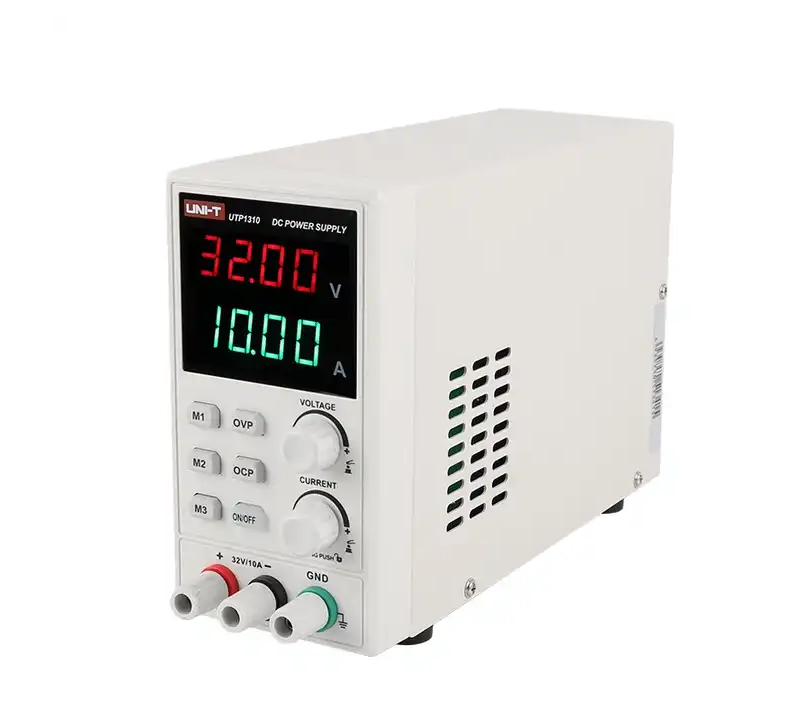

UNI-T UTP1310 DC Regulated Power Supply (1CH)
Channel: 1
Output rating:
+ Voltage: 0~32A
+ Current: 0~10A
+ Power: 320W
Load Regulation
+ Voltage: <0.1%+5mV
+ Current: <0.2%+3mV
Line regulation
+ Voltage: <0.01%+5mV
+ Current: <0.2%+3mV
Programming Accuracy:
+ Voltage: <0.1%+1 digists
+ Current:<0.2%+3mV
Read back accuracy:
+ Voltage: <0.1%+1 digists
+ Current: <0.2%+3 digists
Ripple
+ Voltage: 10mVrms
+ Current: 5mArms
OVP: 0~32V ±0.2%FS
OCP: 0~10.0A±0.2%FS
Max
+ Voltage: 32V±0.2%
+ Current: 10.0A±0.2%
Set resolution:
+ Voltage: 10mV
+ Current: 1mA
Readback resolution:
+ Voltage: 10mV
+ Current:1mA
Display: LED, 4-digit display
Dimension (W*H*D): 80x150x230mm
Net weight: 1.9kg
Input voltage: AC: 110 ( ±10%)V/220 (±10%)V, 50Hz
Environment:
+ Operating: 0°C~40°C, ≤80%RH
+ Storage: -20°C~60°C, ≤80%RH
