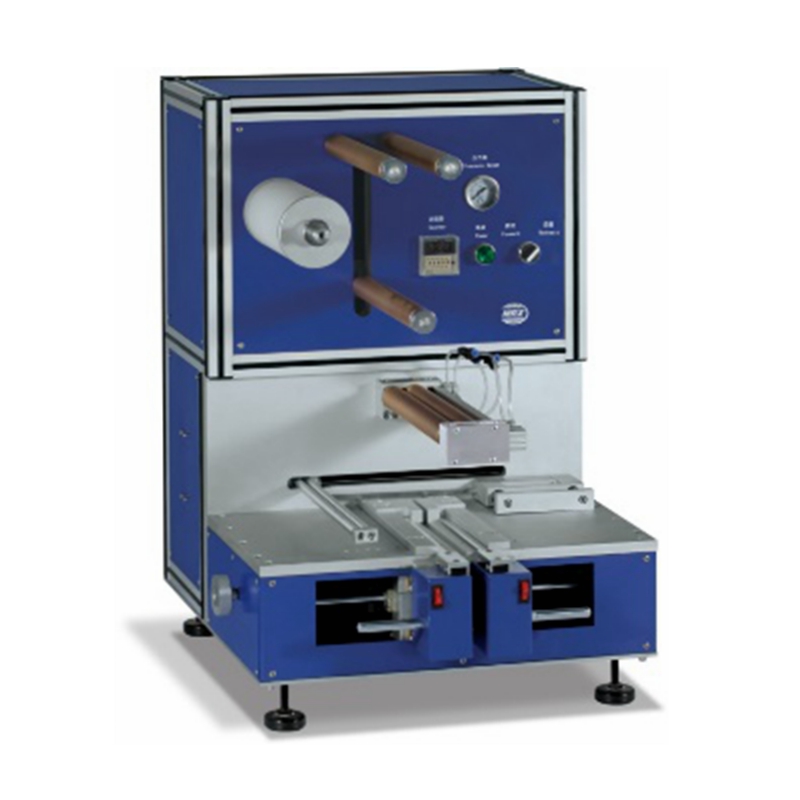

ACEY ACEY-SSM-B Semi-automatic Battery Electrode Stacking Machine For Pouch Cell Lab Research

Lamination accuracy: Neatness is better than ±0.5 mm

Lamination thickness: Max. 12 mm (adjustment plate needs to be replaced if thicker)

Diaphragm roll diameter: Max. 220 mm

Air source: 0.4–0.6 MPa compressed air

Lamination size (including lug length): Min. L44 × W44 mm (smaller size requires replacement) Max. L200 × W150 mm (lug on long side)

Using environment: Recommended temperature 25±3℃, humidity 30–90% RH, no vibration and electromagnetic interference

Power source: Single-phase 220VAC±10% (110VAC customizable), 50Hz/60Hz, 200 W

Dimensions: L510 × W825 × H585 mm

Weight: 80 kg

1. Applicable to a wide range of cell stack sizes.

2. Semi-automatic lamination, constant tension control system.

3. Automatic counting of the number of laminations, manual resetting, design of digital display counter.

4. Automatically maintain the last used parameter state function after power failure or not in use.

5. Adopt foot switch to control cylinder movement.

6. The adjustment, operation and maintenance of the machine are simple and easy.

7. High working efficiency, with digital display timer.

8. Desktop design is small and convenient, simple to operate and easy to maintain.
