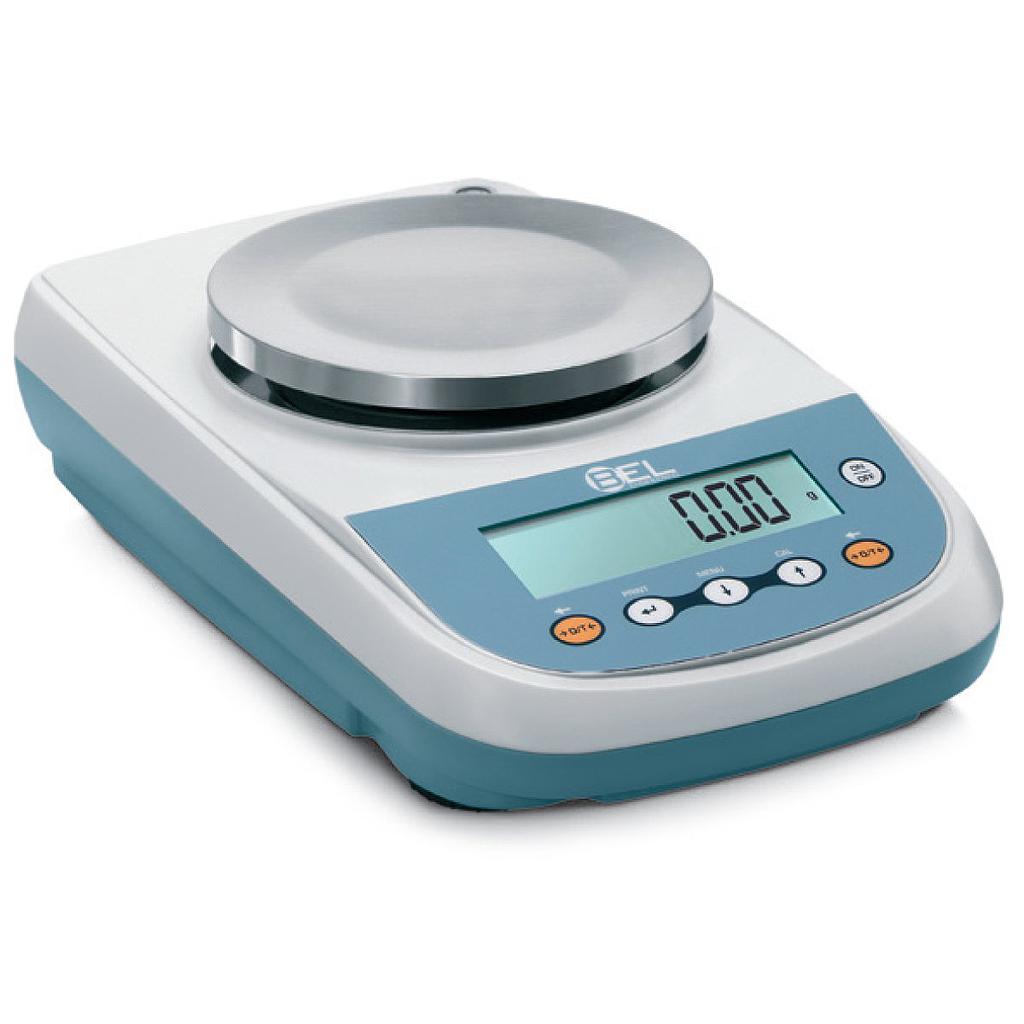

BEL Engineering M4202i Precision Balance (4200g; 0.01g; internal)

Capacity [Max]: 4200g

Resolution [d]: 0.01g

Calibration: Automatic Internal

Pan Size: Ø 160mm

Repeatability: 0.01g

Response Time (sec.): ≤2

Linearity: ±0.03g

Verification: [M]

Minimum Load: 500mg

Display: LCD

Tare Range (Subtractive): 4200g

Span Drift In +10…+30°C: ±3ppm/°C

Interface: RS232

Database Capacity: -

Windshield Type And Dimensions: -

Working Temperature: 5 - 35°C (15 - 30°C for verified models)

Power Supply: 110 - 230VAC, 50/60Hz, output 24VDC, 500mA, 13VA

Power Consumption (Max): 2W

Calibrates With (Class): 2000g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 100mm

Net Weight / Gross Weight, Approx.: 5.1 / 7.1kg
