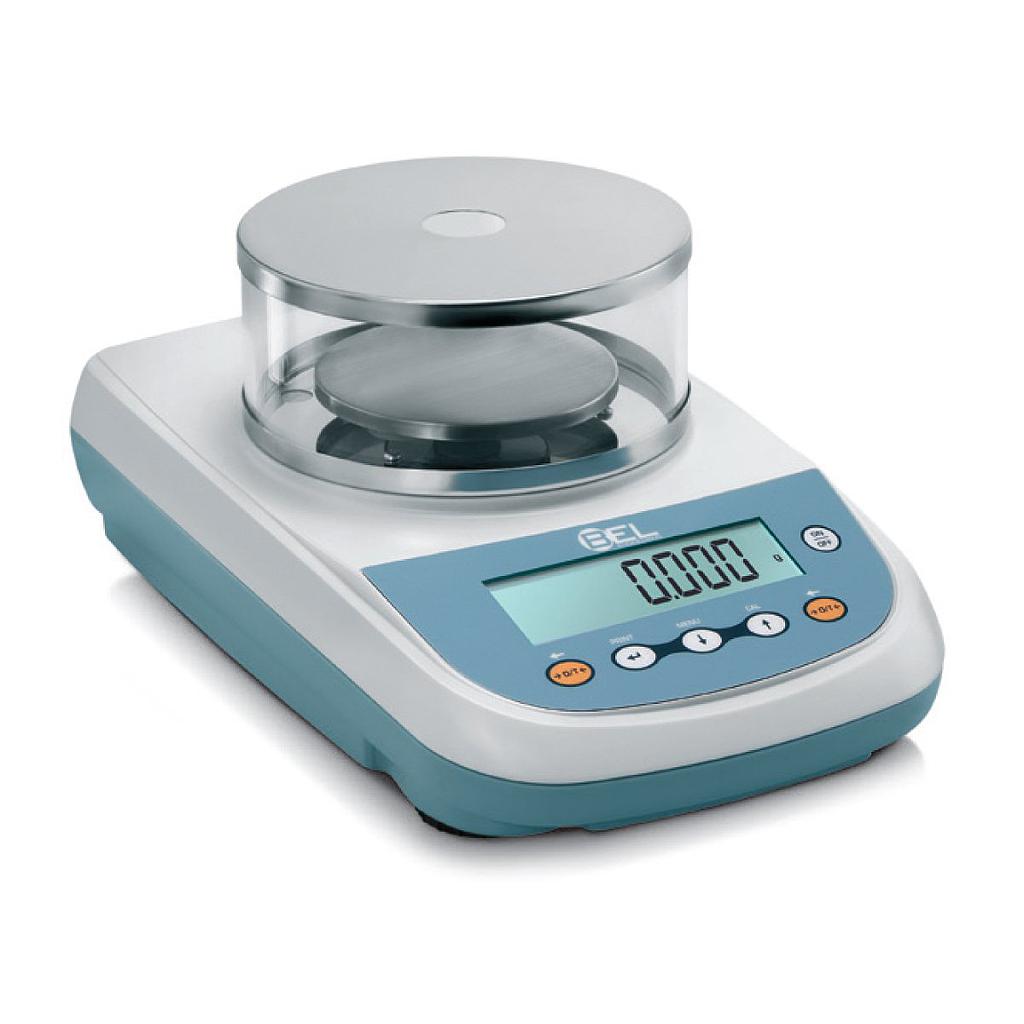

BEL Engineering M8202 Precision Balance (8200g; 0.01g)

Capacity [Max]: 8200g

Resolution [d]: 0.01g

Calibration: External

Pan Size: Ø 160mm

Repeatability: 0.01g

Response Time (sec.): ≤3

Linearity: ± 0.04g

Verification: N/A

Minimum Load: 500 mg

Display: LCD

Tare Range (Subtractive): 8200 g

Span Drift In +10…+30°C: ± 4 ppm/°C

Interface: RS232

Database Capacity: -

Windshield Type And Dimensions: -

Working Temperature: 5 - 35°C (15 - 30°C for verified models)

Power Supply: 110-230Vac, 50/60Hz, output 24V 500mA 13VA

Power Consumption (Max): 2 Watt

Calibrates With (Class): 2000 g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 100 mm

Net Weight / Gross Weight, Approx.: 4.6 / 6.6 Kg
