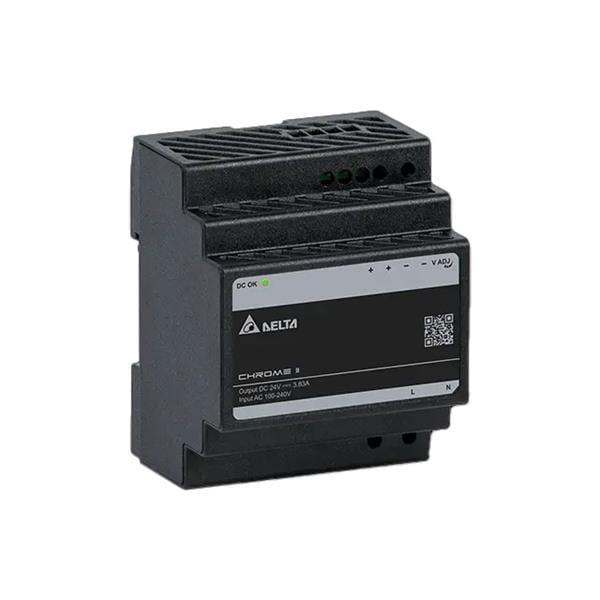

Delta Electronics, Inc. DRC-24V100W1RZ 电源 100W 85-264Vac 24Vdc 3.83A

Width: 70 mm (2.756 in)

Height: 55 mm (2.165 in)

Length: 87.5 mm (3.445 in)

Industry: Industrial

Dimensions: 87.5 mm x 70 mm x 55 mm

Input Type: 1-Phase / Single Phase

Unit Weight: 230 g

Output Power: 100 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3.83 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
