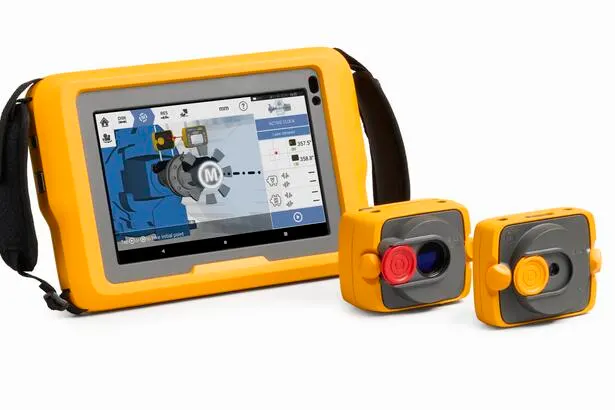

FLUKE FLUKE-832 ROW Laser Alignment

CPU

Processor: Octa-Core (8): 2.2 GHz (2 cores) and 1.8 GHz (6 cores)

Memory: 4 GB LPDDR4X SDRAM / 64 GB UFS Flash

Display

Technology: Corning® Gorilla® Glass

Resolution: WXGA 1280 × 800, 600 nits

Size: 8 inch / 20.3 cm

Power Supply

Operating Time: Up to 11 hours

Battery: 6100 mAh, 3.87 V rechargeable Li-Ion Polymer (23.61 Wh)

Charging: USB-C

Connectivity

Wi-Fi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax 2×2 MU-MIMO; Wi-Fi® Certified; IPv4, IPv6 (Wi-Fi 6)

Bluetooth: Bluetooth v5.1 / 2.1+EDR Class 2 (Bluetooth LE)

RFID: Integrated RFID with read and write capabilities

Ports: Docking connector (charging and data), USB-C side port (tablet charging and data only)

Environmental Protection

IP Rating: IP65 (dustproof and resistant to water jets)

Relative Humidity: 5% to 95% non-condensing

Drop Test

Drop Resistance: 1.2 m (4 ft)

Temperature Range

Operating: -20°C to 50°C (-4°F to 122°F)

Storage: -40°C to 70°C (-40°F to 158°F)

Dimensions

Size: 267 mm (L) × 171 mm (H) × 35 mm (D)

Imperial: 10 33/64" × 6 47/64" × 1 3/8"

Weight

930 g (2.1 lbs)

Camera

Rear Camera: 13 MP autofocus camera with user-controllable LED flash

Front Camera: 5 MP

CE Conformity

Refer to the CE compliance certificate

Carrying Case

Dimensions: 595 × 355 × 115 mm (23 1/2" × 14" × 4 1/2")

Fluke 832 Sensor

General Specifications

Type

6-axis, 2 planes (4 displacement axes and 2 angular axes)

Measurement

Optical Range: 14 × 14 mm (0.55 × 0.55 in.)

Measurement Area: Unlimited, dynamically extendible

Resolution: 1 μm (0.04 mil); Angular 10 μRad

Error: < 2%

Transmission Rate: Approx. 20 Hz

Inclinometer

Resolution: 0.1°

Error: Roll ±1°; Pitch ±3°

LED Indicators

1 LED for laser adjustment, battery and charge status

1 LED for Bluetooth communication

Power Supply

Battery: Rechargeable Lithium-Ion battery, 3.7 V, 4.7 Wh

Operating Time: 30 hours (continuous use)

Charging Time: 2.5 h to 80%; 4 h to 100%

Charging: USB-C

External Interface

Integrated low-power 2.4 GHz radio (Bluetooth LE)

USB 2.0 Full Speed

Radio Transmission Distance

Up to 50 m (160 ft) line of sight

Environmental Protection

IP65: Dustproof, resistant to water jets, shockproof

Relative Humidity: 10% to 90%

Ambient Light Protection

Optical and active electronic digital compensation

Temperature Range

Operating: -10°C to 50°C (14°F to 122°F)

Charging: 0°C to 35°C (32°F to 95°F)

Storage: -20°C to 50°C (-4°F to 122°F)

Dimensions

Approx. 104 × 72 × 54 mm (4 1/8" × 2 13/16" × 2 1/8")

Weight

Approx. 231 g (8.2 oz)

CE Conformity

Refer to the CE compliance certificate

Package Content

Fluke 832 Shaft Alignment Tablet

Fluke 832 sensor

Fluke 832 Laser

Charger

Carrying Case

Safety information sheet

Calibration Certificates

Datasheet
