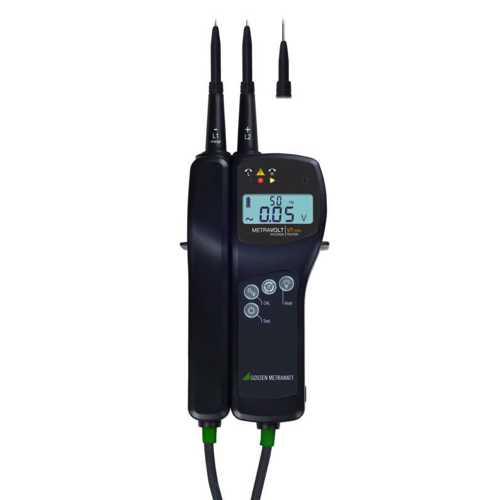

Gossen Metrawatt M630P Voltage And Continuity Tester (0 ~ 1000 V AC / 1500 V DC)

Application: 2-pole voltage tester, continuity tester, ohmmeter, and phase sequence indicator

Voltage Range: 0 to 1000 V AC / 1500 V DC

Frequency Range: 16.7 Hz to 10 kHz (< 500 V); 16.7 Hz to 2 kHz (> 500 V)

Resistance Measurement: 0.00 to 999 kΩ (displayed digitally on LCD)

Continuity Testing: Visual (green LED) and acoustic (buzzer for resistance ≤ 1.00 kΩ)

Display: 2-color backlit LCD (Red illumination for dangerous voltage > 50 V AC / 120 V DC)

RCD Test: Quick test for 30 mA RCDs at 230 V

Phase & Rotation: Phase indication via "POL" and LED; Phase sequence via yellow LEDs (clockwise/counterclockwise)

Load Connection: 40 mA for 10 seconds

Electrical Safety: CAT IV 1000 V (per IEC 61243-3 / VDE 0682-401)

Protection Rating: IP 65 (dust-proof and protected against water jets/rain)

Operating Temperature: –15°C to +55°C

Dimensions: 275 × 89 × 35 mm (total unit)

Weight: approx. 270 g (including batteries)

Special Features: Measuring point illumination, HOLD function to "freeze" values, and adjustable electrode length (4 mm or 16 mm)

Datasheet

Delivery

1 voltage tester

1 set of operating instructions

2 batteries
