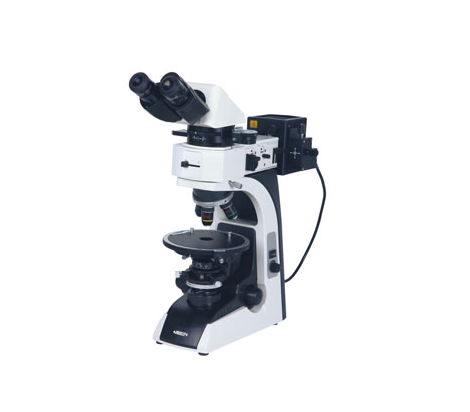

INSIZE ISM-POL1000 Polarizing Microscope (40X~600X)

Magnification: 40X~600X

Eyepiece: 10X (view field: ϕ 20mm)

Infinite strain free plan achromatic objective: 4X(transmitted/reflected); 10X (transmitted/reflected); 20X (transmitted); 40X (transmitted); 60X (transmitted)

Working distance: 22.2mm; 6.1mm; 6.4mm; 0.6mm; 0.3mm

Numerical aperture: 0.1; 0.25; 0.4; 0.65; 0.8

Stage:

- Revolving round stage

- Diameter: ϕ160mm

- Graduation: 1 °

- Resolution: 6’

Pupil distance: 63~75mm

Diopter adjustment: ±5 diopter (one eyepiece)

Illumination:

- 12V/50W halogen lamp, brightness is adjustable (reflected illumination)

- 12V/50W halogen lamp, brightness is adjustable (transmitted illumination)

Power supply: 110/220V, 50/60Hz

Dimension: 614x250x394mm

Weight: 13kg

Standard delivery:

- Main unit: 1pc

- Micrometer: 1pc

- Grid plate: 1pc

- 10X crossing eyepiece (view field: ϕ20mm)

- 10X dividing eyepiece (view field: ϕ20mm, graduation: 0.1mm)

- λslip (first class red) and 1/4 λ slip

- Quartz wedge

Optional accessory:

- Objective for reflected system

- Objective for transmitted system

- Specimen presser
