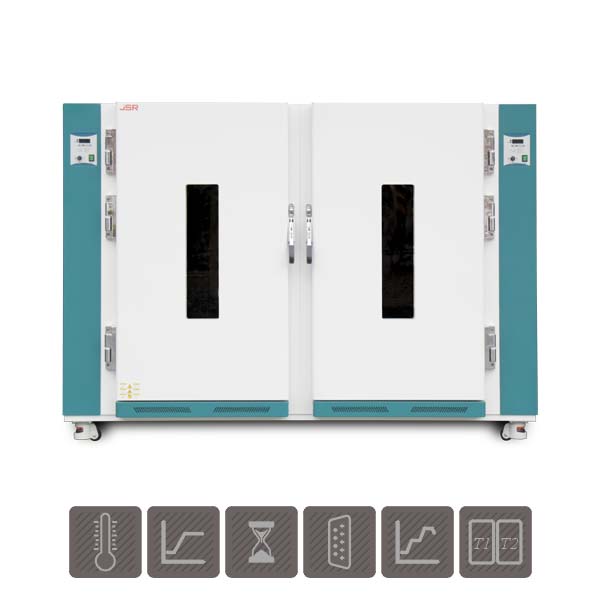

JSR JSOF-600W Dual Chamber Industrial Oven (250 °C; 2 × 612 L)

Chamber Volume: 2 Chambers × 612 L

Internal Dimensions (W × D × H): 600 x 850 x 1200 mm

External Dimensions (W × D × H): 2165 x 1025 x 1545 mm (1695 mm incl. damper)

Window Dimensions (W × H): 150 × 615 mm

No. of Shelves Included: 8 ea

No. of Shelf Positions: 22 ea / 25 mm spacing

No. of Ventilation Dampers: 1 ea / chamber

Heating System: Forced Air Convection

Temperature Range: Ambient +10 °C … +250 °C

Temperature Accuracy (at 120 °C): ±0.3 °C

Temperature Uniformity (at 120 °C): ±3.0 °C

Heat-Up Time to 120 °C: 15 min

Controller: Digital Microprocessor PID Temperature Controller

Display: 4-Digit LED

Temperature Calibration: Built-in Calibration with Auto-Tuning

Temperature Resolution: 0.1 °C

Timer: 99 min 59 sec / 99 hr 59 min / 99 days 23 hr

Operation Mode: Automatic Start/Stop Timer, Continuous Operation

Sensor: Class A PT-100 Ω

Power Supply: 220 VAC ±10%, 50/60 Hz

Heater Output: 2 x 2.0 kW / chamber

Nominal Power: 4.1 kW / 18.6 amp per chamber

Phase: Single Phase

Plug Configuration: 1 ea x 30 AMP Plug / chamber

Temp. & Humidity: 5 °C … 40 °C / < 80% RH
