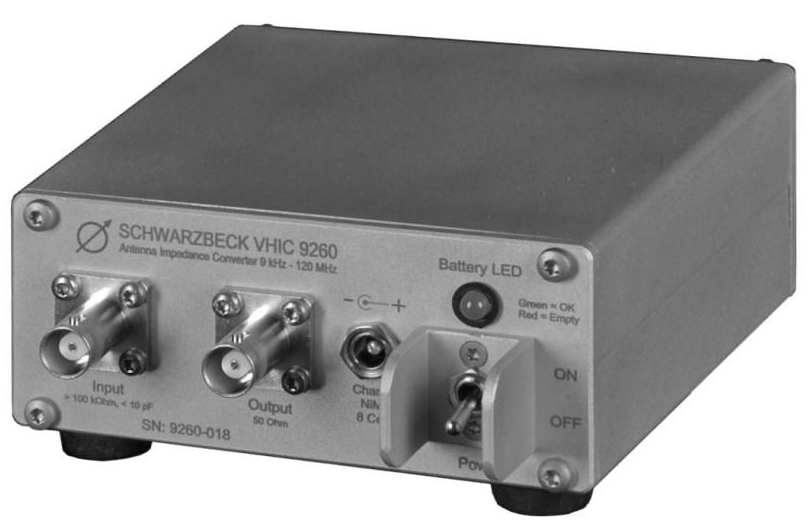

Schwarzbeck VHIC 9260 阻抗变换器 (9 kHz – 30 MHz)

Frequency range (nominal): 9 kHz – 30 MHz

Frequency range (usable): 9 kHz – 120 MHz

Voltage gain (50 Ω load): > 10 dB

Amplitude flatness: Max. ±0.5 dB

1 dB compression point at input: 92 dBµV

Input impedance: Rin > 100 kΩ, Cin < 10 pF

Output impedance: 50 Ω

VSWR output: < 1.2 : 1

Noise at input (AV-detector, BW = 9 kHz, 150 kHz – 120 MHz): < -10 dBµV

Ambient temperature: -10° to +60°C

Power supply: +9.6 V NiMH

Current consumption: < 35 mA

Material of the housing: Aluminium

Dimensions: 105 × 125 × 50 mm

Weight: 680 g

Recommended charger: ACS 110
