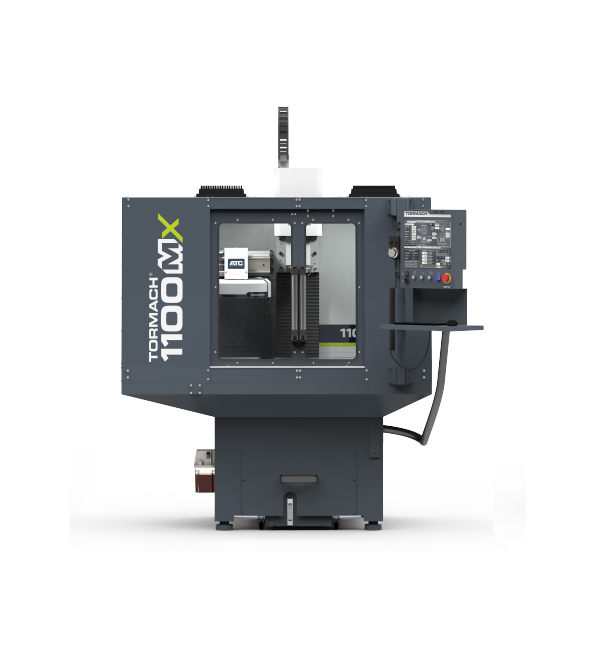

Tormach 1100MX CNC Milling Machine

Travels

X-Axis: 18 in. (457 mm)

Y-Axis: 11 in. (279 mm)

Z-Axis: 16.25 in. (413 mm)

Spindle

Spindle Power: 2 hp (1.49 kW)

Maximum Speed: 10,000 rpm

Transmission: Poly-V Belt

Spindle Taper: BT30

Threading: Rigid Tapping, Tension/Compression, Thread Milling

Maximum Feed Rate

X- and Y-Axis: 300 IPM (7.62 m/min)

Z-Axis: 230 IPM (5.84 m/min)

Axis Motor

Servo Driven

Power

Power Required: Single-Phase 230VAC, 50/60Hz, 20A breaker

Machine Specifications

Table Size: 34 in. × 9.5 in. (863 mm × 241 mm)

Table Slots: 5/8 in. (15.9 mm), 3 slots

Spindle Nose to Table Max Clearance: 17.25 in. (438 mm)

Spindle Centerline to Machine Column: 11 in. (279 mm)

Machine Size: 69 in. × 56.5 in. (1.8 m × 1.4 m)

Overall System Height: 96 in. (2.4 m)

Typical System Weight (with ATC): 1850 lbs. (839 kg)
