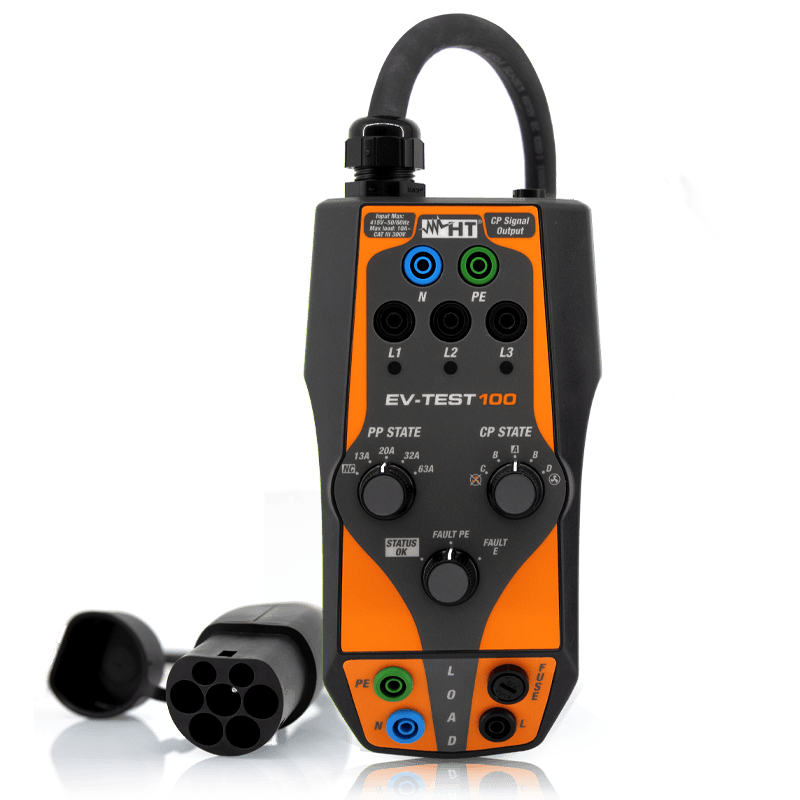

HT EV-TEST100 EVSE Adapter

Use for EVSE charging stations: Charging modes 2 and 3

Test cable with connector: Type 2 (IEC 62196-2)

Vehicle simulation via Control Pilot (CP state): States A, B, C, D

Simulating the current capacity of Proximity Pilot (PP state): NC, 13A, 30A, 32A, 63A

Fault condition simulation on PE: FAULT PE

Diode simulation in short circuit: FAULT E

EVSE internal counter efficiency check: LOAD

Input voltage: Max 415V AC, Phase-Phase, 50 / 60Hz

External load L-N-PE: 240V 50/60Hz, Max 10A AC

CP signal: PWM 12V

External load protection: Fuse FF 10A / 250V, 5x20mm

Operating temperature: 0°C~ 40°C

Operating humidity: <80&RH
