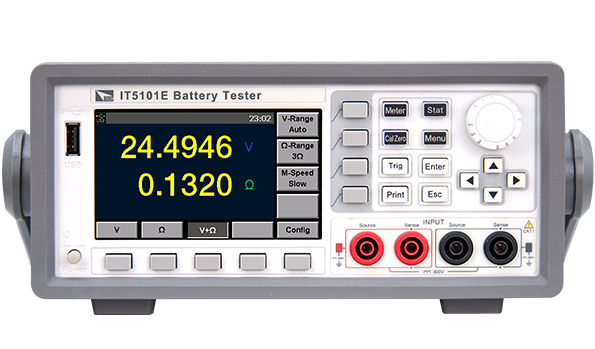

ITECH IT5101 电池内阻测试仪 (10µV-300V; 150µΩ-3000Ω)

  • 制造商: ITECH
    Model: IT75101
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化


Manufacture: Itech
Model : IT5101
Warranty : 12 months


- Voltage value:
+ Range -6~6V; 0.01mV; ±(0.01%+0.01%FS)
+ Range -60~60V; 0.1mV; ±(0.01%+0.01%FS)
+ Range -300~300V; 1mV; ±(0.01%+0.01%FS)
- Resistance Value:
+ Range 3 MΩ; 0.1μΩ; ±(0.4%+0.1% FS)
+ Range 30 mΩ; 1 μΩ; ±(0.4%+0.05% FS)
+ Range 300 mΩ; 10 μΩ; ±(0.4%+0.05% FS)
+ Range 3 Ω; 0.1 mΩ; ±(0.4%+0.05% FS)
+ Range 30 Ω; 1 mΩ; ±(0.4%+0.05% FS)
+ Range 300 Ω; 10 mΩ; ±(0.4%+0.05% FS)
+ Range 3000 Ω; 0.1 Ω; ±(0.4%+0.05% FS)
- Response time: 10 ms
- Input resistance: ≥1 MΩ
- Rating input: DC ±300 V
- Interfaces: GPIB/USB/LAN
- Operation temperature: 0℃ ~ 40℃,≤ 80% RH or less (Non-condensating)
- Storage temperature: 10℃ ~ 50℃,≤ 80% RH or less (Non-condensating)
- Dimension: 384*230*105 (mm)
- Weight: 2.4 KG
- Optional accessories:
+ IT-E601: Pin type lead
+ IT-R602: Large clip type lead
+ IT-E603: Pin type lead
+ IT-E603: Pin type lead
+ IT-E605: Zero adjustment board
