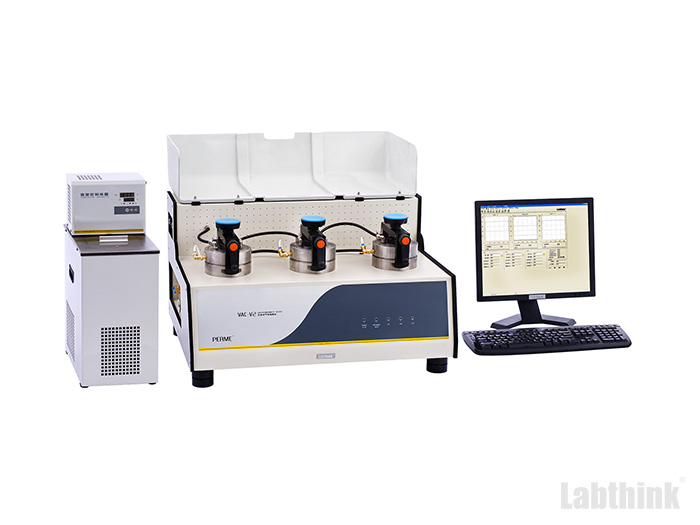

Labthink VAC-V2气体渗透率测试仪

Specifications Film Test

Test Range:

- 0.05~50,000 cm3/m2•24h•0.1MPa (standard volume)

- At least 500,000 cm3/m2•24h•0.1MPa (extended volume)

Number of Specimens: 3 (with independent test results)

Vacuum Resolution: 0.1 Pa

Vacuum Degree of Test Chamber: <20 Pa

Temperature: 5°C ~ 95°C

Accuracy: ±0.1°C (standard)

Humidity: 0%RH, 2%RH ~ 98.5%RH, 100%RH (humidity generator is optional)

Accuracy: ±1%RH

Specimen Size: Φ97 mm

Test Area: 38.48 cm2

Test Gas: O2, N2 and CO2 (outside of supply scope)

Test Pressure: -0.1 MPa ~ +0.1 MPa

Gas Supply Pressure: 0.4 MPa ~ 0.6 MPa

Port Size: Φ6 mm PU Tubing

Instrument Dimension: 760 mm (L) x 575 mm (W) x 450 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight: 88 kg
