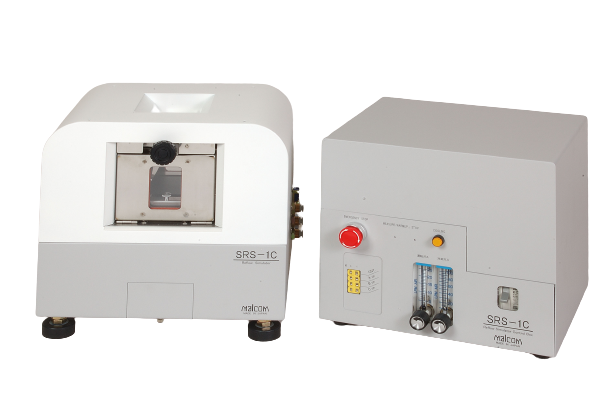

Malcom SRS-1C Reflow Simulator (300℃)

Applicable Circuit Board: Up to 70Wx70Lx10Hmm

Outer Dimension Main Unit: 320Wx285Dx310Hmm

Controller unit: 290Wx235Dx270Hmm

Heating Method

Upper-face: Hot air

Lower-face: Extreme infrared radiation

Cooling Method: Flowing air or N2 air (with flow adjustable valve)

Power Supply: 200V 50/60Hz 3kVA 3Phase

Air: 0.3-0.5MPa 100 liter/min (Maximum)

O2 Concentration in Furnace (when using N2): 100ppm minimum (Heating furnace is sealed up)

PCB Installation: Flat plate system

Upper-Heater: hot air heater: Approx. 2.8kW (Approx. 350W x 8 series) Deviation to standard nozzle can be set.

Lower-Heater: Extreme infrared radiation heater: Approx. 360W

Temp. Accuracy: 5C maximum (Maximum range: 50(W)x50(L)mm in the center)

Measuring Temp. Range: Room temp. -330C

Measuring Points: 3points

N2 Gas Supply Function: 25 liter/min. with flow regulating valve during operation.

Control: Exclusive softwarefor Windows XP

Weight

          Main unit: Approx. 12kg

          Controller unit: Approx. 8kg
