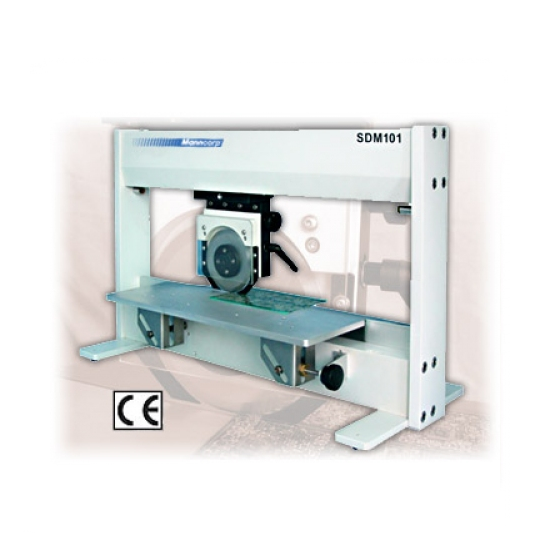

手动分板PCB工具Manncorp SDM-101
制造商: MANNCORP Model: SDM-101 来源: China 保障: 12 Month - 报价要求
- 联系
Manufacturer: Manncorp - USA
Model: SDM-101
Origin: China
Warranty: 12 months
PCB Thickness: 0.8 mm to 3.0 mm
Maximum Depaneling Length: 460 mm (18.1") or 600 mm (24")
V-Scoring Lines:
Depth of scoring (A): ≥ 0.25 mm
Remaining PCB thickness (B): 1.0 mm max
Component from scoring (C): ≥ 1 mm
Scoring angle θ: ≥ 20˚ (typical)
Max. component height (D): 32 mm
Depaneling Mode: Manual
Separating Speed: Dependent on operator
Production Rate: Moderate volume
Scoring Angle: 20˚
Minimum Component Distance from V-Groove: 1 mm
Maximum Component Height: 32 mm (1.26")
PCB Materials: FR4, CEM3, etc.
Processing table: 500 x 165 mm (19.7" x 6.5")
Dimensions (L x W x H): 750 mm x 240 mm x 742 mm (29.5" x 9.4" x 18.5")
Net Weight: 32 kg (70.5 lbs)
Shipping Weight: 66 kg (146 lbs)
