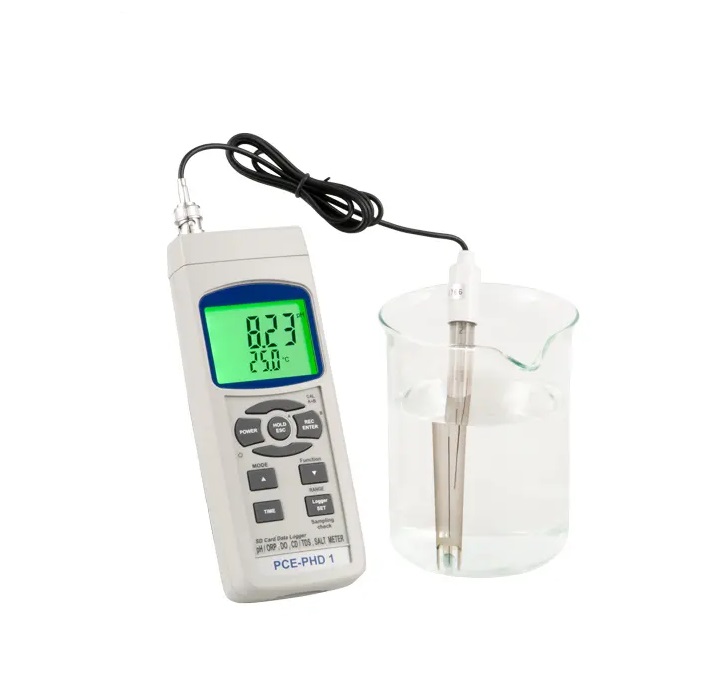

PCE PHD 1 多功能pH计

pH measurement



Measurement range

0 ... 14.0 pH

Resolution0.01 pH
Accuracy±0.02 pH + 2 digits
Calibration3 points (pH 4, pH 7, and pH 10)
Temperature compensationAutomatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF)


Conductivity
Measurement range0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
Resolution0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy±2 % of the measurement range + 1 digit
Calibration1413 mS/cm
Temperature compensationAutomatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Total dissolved solids (TDS)
Measurement range0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm
Resolution0.1 ppm, 1 ppm, 10 ppm, 100 ppm
Accuracy±2 % of the measurement range + 1 digit
Temperature compensationAutomatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Salt content
Measurement range0 ... 12 % (of weight)
Resolution0.1 %
Accuracy±0.5 % of the measurement range
Temperature compensationAutomatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Oxygen
Measurement range0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF
Resolution0.1 mg/l, 0.1 %, 0.1 ºC
Accuracy±0.4 mg/l, ±0.7 %, ±0.8 ºC
CalibrationIn the air
Temperature compensatioAutomatic (0 ... 50 ºC / 32 ºF ... 122 ºF)

Temperature
Measurement range0 ... 60 ºC / 32 ºF ... 140 ºF
Resolution0.1 ºC
Accuracy±0.8 ºC
Temperature compensationAutomatic (0 ... 60 ºC / 32 ºF ... 140 ºF)


Specifications

Measurement rate: 1 second up to 9 hours

Display: LCD

Memory: SD card up to 16 GB (4 GB card included)

Interface: RS-232

Software: Optional

Power supply: 6 x 1.5 V AA batteries (optional power adapter)

Operating conditions: 0 ... +50 ºC / < 85 % RH

Dimensions: 177 mm x 68 mm x 45 mm / 7.0 in x 2.7 in x 1.8 in

Weight: 490 g / 1.1 lbs



Dilivery Contents

1 x PCE-PHD 1 multifunction conductivity meter

1 x pH electrode

1 x conductivity electrode

1 x SD memory card

6 x 1.5 V AA batteries

1 x user manual
