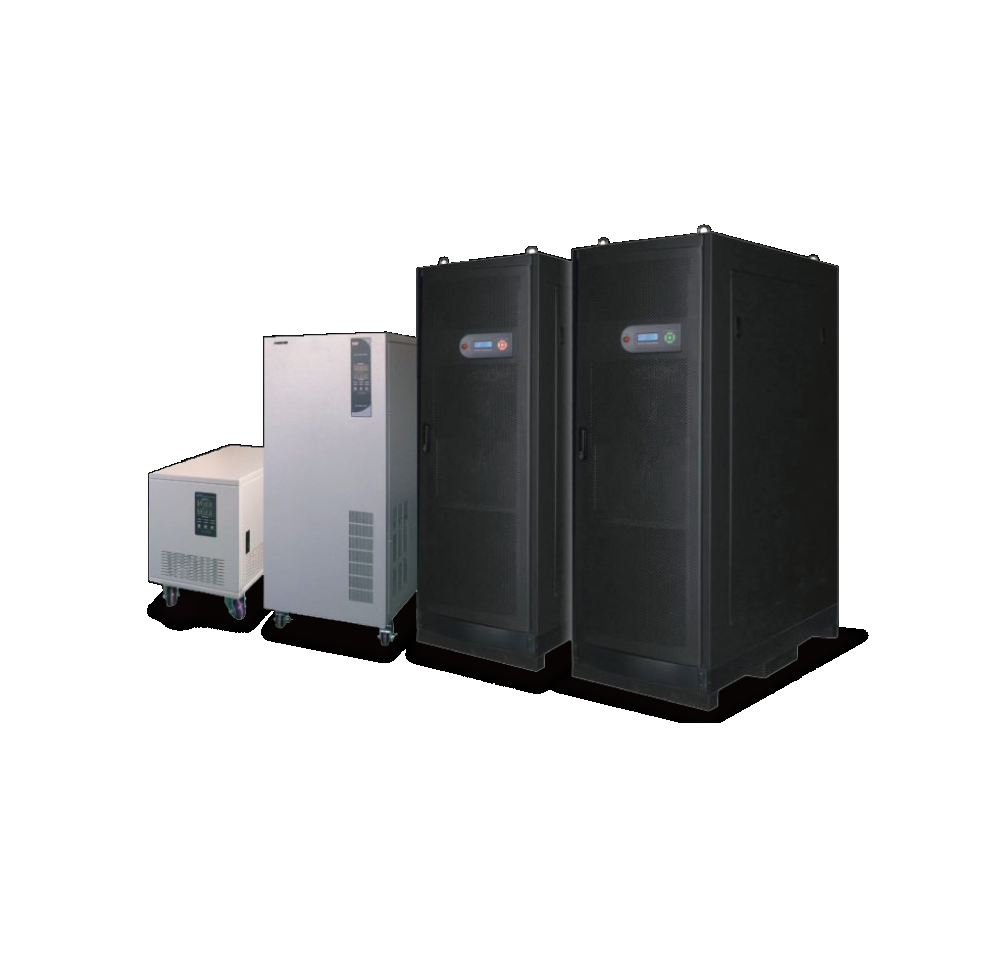

Preen APH-330060 感应式自动电压调节器 (60kVA; 220V / 380V)

Capacity: 60kVA

AC INPUT

Phase: 3Ø3W+G ( ∆)/  3Ø4W+G ( Y ) (Option)

Voltage*1: 220V/ 380 V

Voltage Range:  -13% ~ +17%/ -22%~ +30% (Option)

Frequency: 47Hz-63Hz

AC OUTPUT

Phase: 3Ø3W+G ( ∆)/  3Ø4W+G ( Y ) (Option)

Voltage*2: 220V/ 380 V/ 230V/ 400V / 240V / 415V (Option)

Accuracy: ±2% ( ±2% ~ ±5% adjustable)

Frequency: 47Hz-63Hz

Power Factor: ±0.7-1

METER & INDICATOR

VoltMeter: LED digital meter for voltage of each phase, Accuracy  ≤ 1%

Ammeter: LED digital meter for voltage of each phase, Accuracy  ≤ 1%

Error: Error code and message available when a abnormal condition occurs

LED Indicator: Normal, abnormal, over voltage, under voltage, over load, auto/manual mode

PROTECTION

Over/ Under Voltage: Sound- light alarm with output shutdown

Missing Phase: Sound- light alarm with output shutdown

Incorrect Phase Sequence: Sound- light alarm with output shutdown

Bypass Swtich: Manual Bypass Swtich (Option)

Over Load: Sound - light alarm

GENERAL

Efficiency : ≥ 97% at Full Load

Voltage Modulation: ≥ 4V/S

Total Harmonic Distortion : ≤ 1% (Additional distortion)

HMI: LED display for meter and auto/manual voltage adjustment

Audible Noise(1 meter): ≤ 55dB

Cooling System: Fan Cooling

Connections: Terminal

ENVIRONMENT

Operational Temperature: -5°C ~ 40°C

Humidity : <95% Non-condensing

Altitude: 1000m

Dimension(H x W x D): 950 x 450 x 600 mm/ 37.4 x 17.71 x 23.62 inch

Weight: 280kg/ 617.2 lbs
