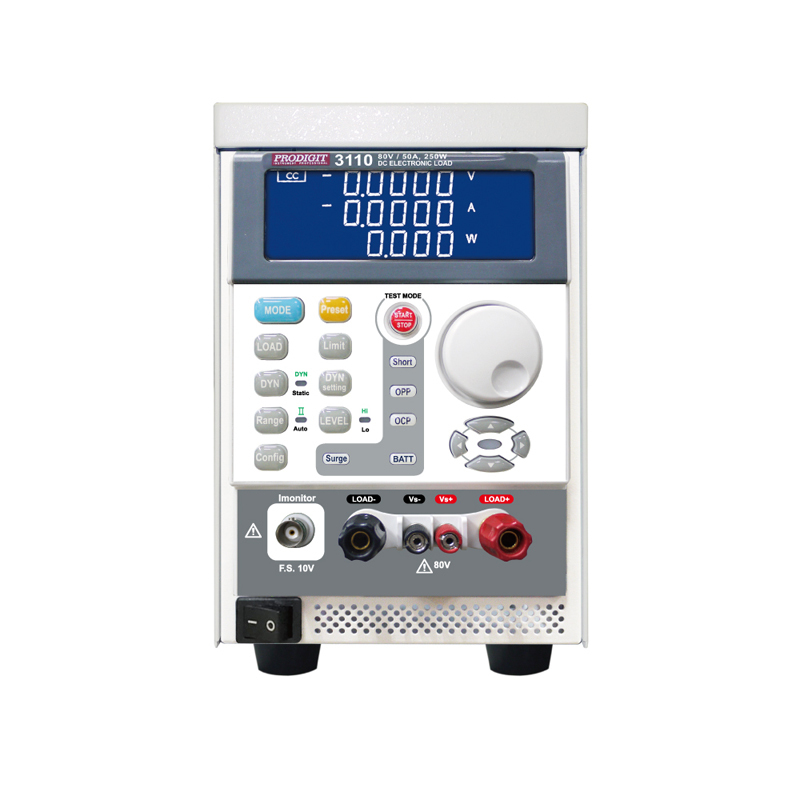

PRODIGIT 3110 DC Electronic Load (80V, 50A, 250W)

Max Power: 250 W

Max Current: 50 A

Operation Voltage: 80 V

Min. Operating Voltage: 1.0V at 50A

Protection: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp. Protection (OTP)

CC MODE Range: 0~5.04~50.4 A

CR MODE Range: 0.016~1.6~96000Ω

CV MODE Range: 0~8.1~81 V

CP MODE Range: 0~25.02~250.2 W

Dynamic Operation: 10 μS to 9.999 Sec

Measurement:

- 5 1/2 DVM: 0~8.1~81 V

- 5 1/2 DAM: 0~5.04~50.4 A

Surge Test: 0~50A

Battery Discharge Test: 0~81V

Load ON Voltage: 0.1~25V

Load OFF Voltage: 0~25V

Imonitor (non-Isolated): 5.04 A/V

Typical Short Resistance: 0.018 Ω

Max. short Current: 50A

Interface: USB / RS232

Power Comsumption: 40VA

Dimension(HxWxD): 205 x 123 x 477mm

Weight: 5.3Kg
