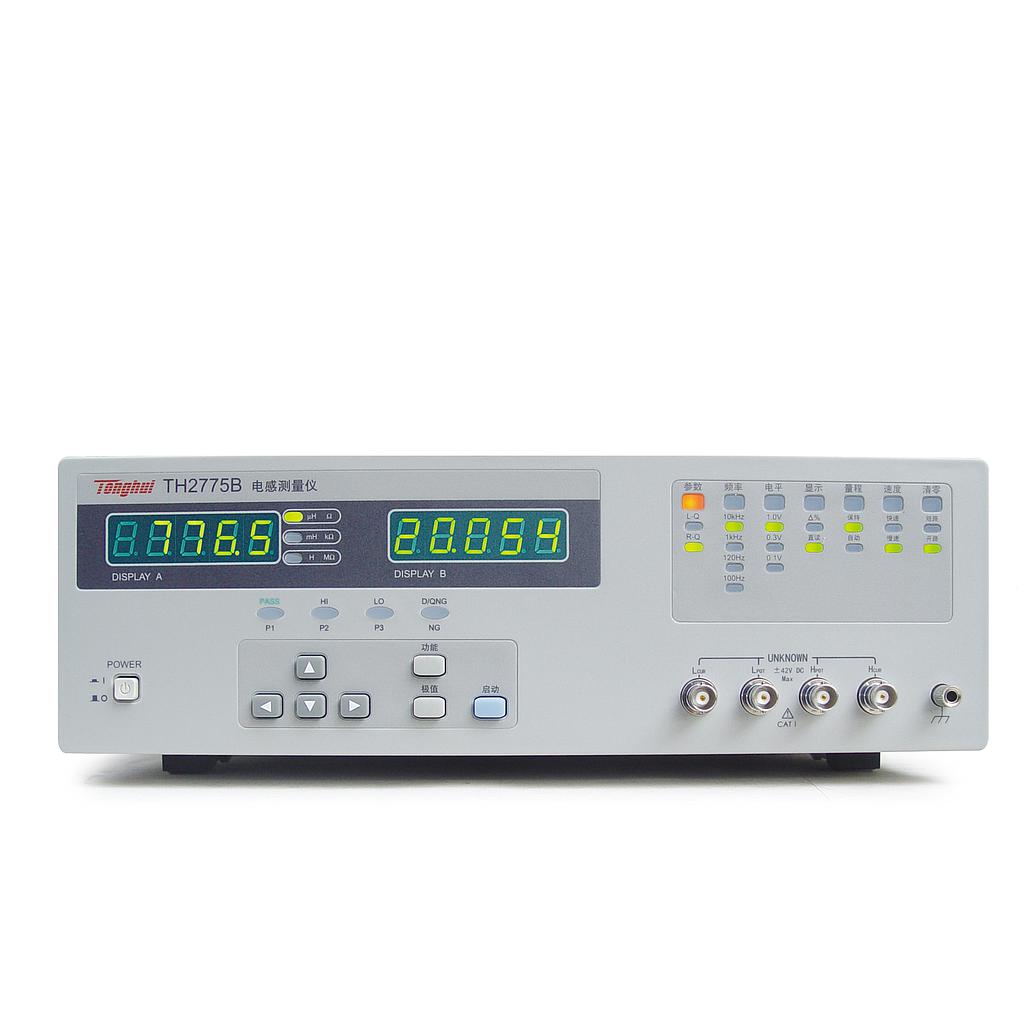

Tonghui TH2775B I电感测量仪 (100Hz~10kHz)

Test Parameter: L-Q, R-Q,

Test Frequency: 100Hz,120Hz,1kHz,10kHz

Test level: 0.1Vrms, 0.3Vrms, 1Vrms

Basic Accuracy: 0.1%

Measuring speed: Fast: 15 meas/sec, Slow: 4.5 meas/sec

Equivalent Circuit: Series and Parallel

Trigger Mode: Internal, Manual and External

Measurement Terminals: 5 Terminals

Display Mode: Direct, Δ%

Output impedance: 30 Ω , 100 Ω Selectable

Display Range:

- R: 0.0001Ω – 99.999MΩ

- L: 0.01µH – 99999H

- Q: 0.0001 – 9999

- Δ%: -9999% – 9999%

Interface: RS-232C, Handler

Operating Temperature and humidity: 0°C - 40°C, ≤90%RH

Power Requirements:

- Voltage: 198V - 242V

- Frequency: 47.5Hz - 52.5Hz

Power Consumption: ≤ 20VA

Dimensions (W×H×D): 350mm×110mm×340mm

Weight: Approx. 3.5kg

Details

Instrument Accessories

TH26001 4 terminal test fixture

TH26011 4 terminal Kelvin test clip leads

TH26010 Gilded shorting plate

Options

TH26005A 4 terminal test fixture

TH26006 Axial component test fixture

TH26007A Core inductor test fixture

TH26008A SMD component test fixture

TH26009B SMD Kelvin test tweezers

TH26004-1 4 terminal Kelvin test clip leads

TH12013 RS232C control software
