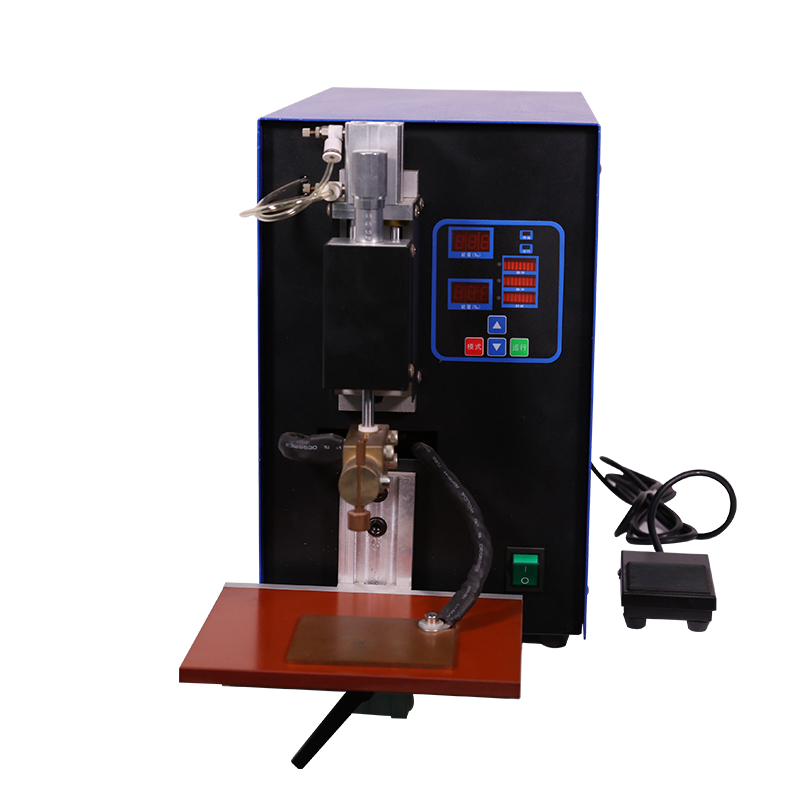

Máy hàn điểm xung pin lithium ACEY ACEY-SW-1

Công suất đầu ra: 10KVA

Dòng hàn: 00～99

Nguồn điện: AC220V±10% 50～60Hz

Áp suất khí đầu vào: 0.1～0.7MPa

Phạm vi ứng dụng: Phù hợp cho nhiều loại tab hàn từ 0.03mm đến 0.25mm

Kích thước: L400 × W560 × H400mm

Trọng lượng: 40kg

The welding current is stable, the size of the solder joints is uniform, the solder joints are beautiful, the sparks are small, and there is no blackening.

Completely overcome the phenomenon of low pressure and water discharge after spot welding of lithium batteries, which is an ideal equipment for the production and assembly of batteries.

Using microcomputer single-chip microcomputer control, single pulse, double pulse and multi-pulse welding can be realized.

All parameters are set digitally, so parameter adjustment is intuitive and accurate.

The welding needle pressure is independently adjusted, and the adjustment is convenient to ensure that the welding pressure is stable and reliable.

Accurate alignment welding, suitable for welding small cap batteries, with high yield.

The appearance is exquisite, beautiful and lightweight.
