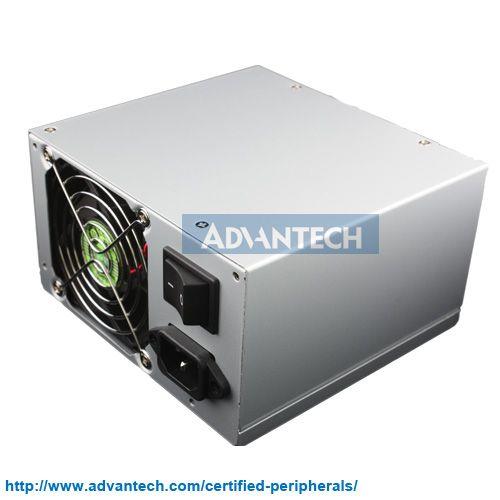

Nguồn chuyển mạch AC 400W PS AX (P8 + P9) 100-240V cho IPC-622C (Mã cũ:1757000193G) Advantech 96PS-A400WPS2-1

Width: 140 mm

Height: 86 mm

Length: 150 mm

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL60950-1

Compliance: EN60950-1, IEC60950-1, UL60950-1

Output Power: 400 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Number of Outputs: 7 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 21 A

Output Current-Channel 2: 20 A

Output Current-Channel 3: 16 A

Output Current-Channel 4: 16 A

Output Voltage-Channel 1: 3.3 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12.1 VDC

Output Voltage-Channel 4: 12.2 VDC
