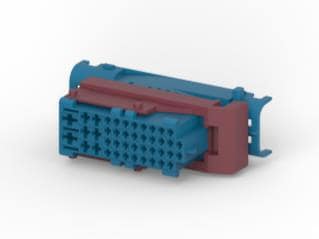

Vỏ Đế Ổ Cắm Hỗn Hợp 42 Vị Trí, Lắp Ráp AMP Connectors - TE Connectivity 1394522-3

Color: Blue

Pitch: 4 mm (0.157 in)

Width: 43.5 mm

Gender: Receptacle (Female)

Height: 27.8 mm

Length: 3.996 in

Application: Wire to Wire

Row Spacing: 5.5 mm

Unit Weight: 37.600 g

Contact Gender: Without Socket Contacts

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Housing Material: Polybutylene Terephthalate (PBT)

Locking Mechanism: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Number of Positions: 42 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
