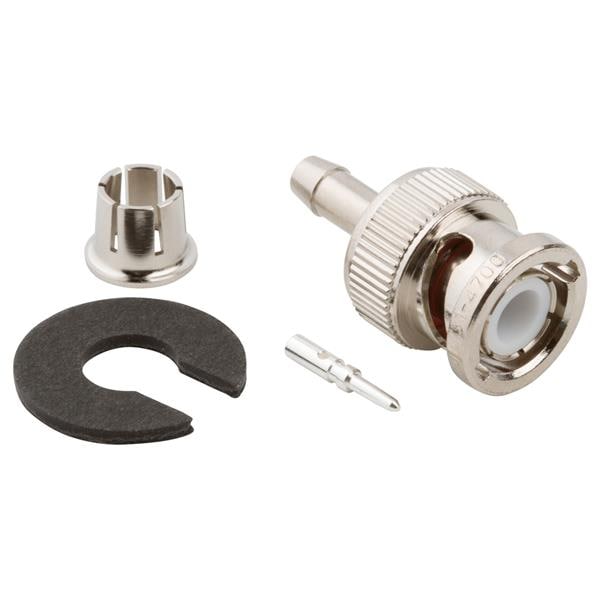

Đầu nối STR PLUG RG58 Amphenol RF 031-4700

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Straight

Cable Type: RG-58

Body Finish: Nickel

Orientation: Straight

Unit Weight: 9.300 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Silver

Contact Material: Brass

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
