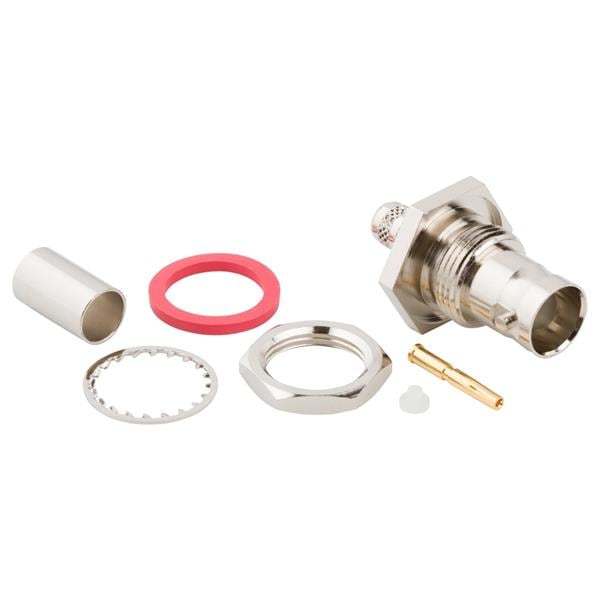

Đầu nối BULKHEAD CRIMP JACK 75ohm RG59 B8241 Amphenol RF 031-71011-RFX

Gender: Jack (Socket)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Bulkhead

Cable Type: RG-59, 62

Body Finish: Nickel

Orientation: Straight

Unit Weight: 10.800 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
