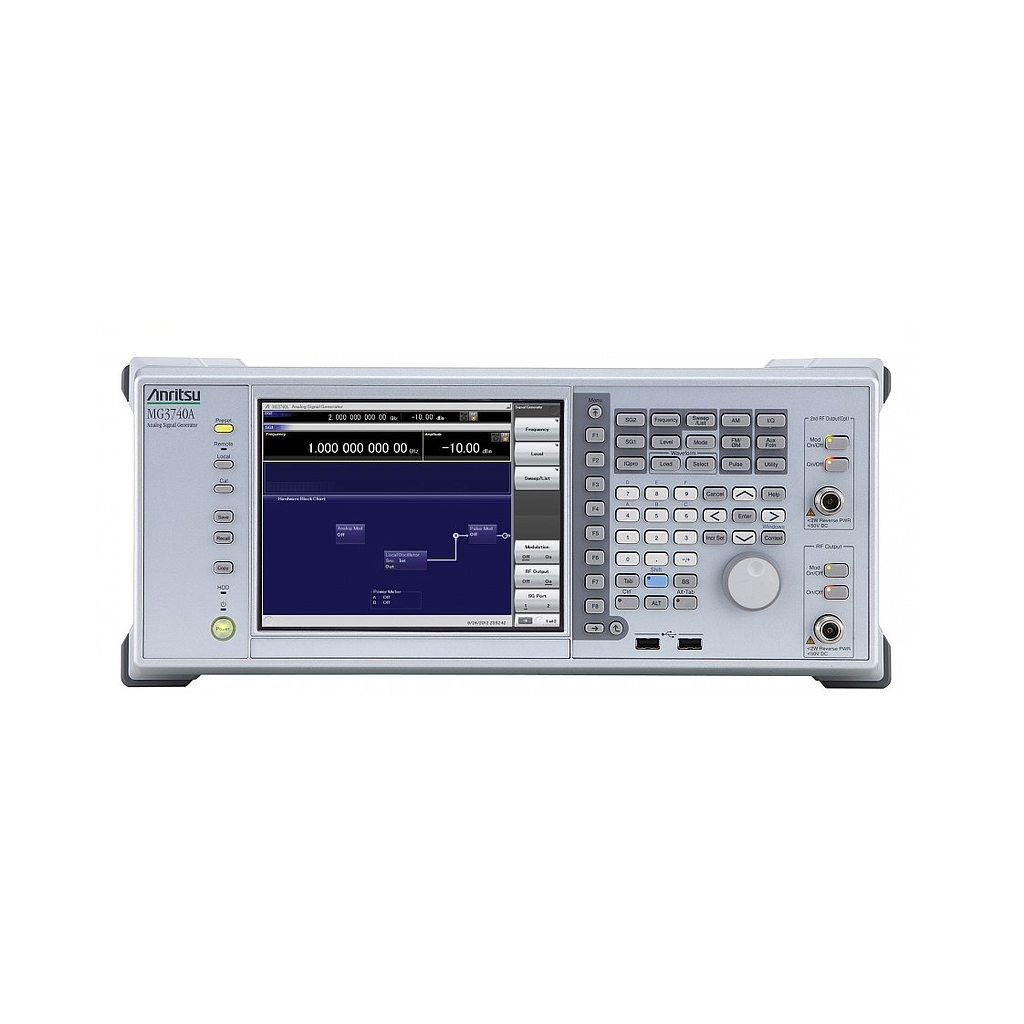

Máy phát tín hiệu cao tần Analog Anritsu MG3740A (100 kHz to 2.7/4/6 GHz)

  • Analog Signal Generator supporting frequencies of 100 kHz to 2.7/4/6 GHz
  • High-purity signal source for testing analog radio
  • Built-in AM/FM/ΦM/Pulse modulation function [Standard]
  • Two RF outputs using Dual-RF [Option]
  • Expansion to narrowband digital modulation signal generator [Option]

The Analog Signal Generator MG3740A has excellent RF specifications, including SSB phase noise, output level, etc., and versatile modulation functions (AM/FM/ΦM/Pulse). The MG3740A is the ideal solution for high-purity signal source for testing analog radio Rx characteristics. Moreover, adding the digital modulation option supports generation of narrowband digital modulation signals.
Supports narrowband digital modulation as well as CW and analog modulations.





Data Sheet



■ Main Performance and Specifications

Basic Performance

  • Frequency range:

  • SSB phase noise:

  • Level setting range:

  • High power output:
  • Switching speed:
100 kHz to 2.7/4/6 GHz [1stRF Option]
100 kHz to 2.7/4/6 GHz [2ndRF Option]
<-140 dbc="" hz="" nom="" 100="" mhz="" 20="" khz="" offset="" cw="" br="" style="margin: 0px; padding: 0px;" data-mce-style="margin: 0px; padding: 0px;"> <-131 dbc="" hz="" typ="" 1="" ghz="" 20="" khz="" offset="" cw="" br="" style="margin: 0px; padding: 0px;" data-mce-style="margin: 0px; padding: 0px;"> -110 to +17 dBm [Standard]
-144 to +17 dBm [Option]
+23 dBm (CW, 400 MHz to 3 GHz) [Option]
<600 s="" frequency="" amplitude="" list="" sweep="" mode="" td="">
  • Built-in AM/FM/ΦM/Pulse modulation function [Standard]




Expansion Options

  • Adding additional analog modulation input [Option]
           Adding additional analog modulation input options extends to two internal modulation sources (AM/FM/ΦM) and
           one external modulation source supporting simultaneous two-signal modulation.
  • Two independent RF outputs using Dual-RF [Option]
           Supports "Wanted + Interference wave for Rx characteristics tests", "Amp intermodulation characteristics evaluation",
           and "RF/LO signal source for Mixer evaluations".
  • USB power sensor (Sold separately)
           Supports connection of two USB power sensors max.
  • Expansion to narrowband digital modulation signal generator [Option]
    Adding the digital modulation function [Option] supports generation of narrowband digital modulation signals.
    • RF modulation bandwidth : 2 MHz
    • Waveform generation software: IQproducer (License sold separately)
        TDMA IQproducer / Fading IQproducer
  • BER measurement function [Option]
           Input bit rate: 100 bps to 40 Mbps

Communications Interfaces

  • Standard 1000BASE-T, GPIB, and USB interfaces
  • Built-in SCPI, MG3700A/MS269xA/MS2830A/MG364xA compatibility modes
  • Hardware Main frameMG3740AAnalog Signal Generator
    Hardware Option
    1stRF
    (Requires one option)
    MG3740A-0321stRF 100 kHz to 2.7 GHz
    MG3740A-0341stRF 100 kHz to 4 GHz
    MG3740A-0361stRF 100 kHz to 6 GHz
    Hardware Option
    2ndRF
    (optional)
    MG3740A-062/1622ndRF 100 kHz to 2.7 GHz
    MG3740A-064/1642ndRF 100 kHz to 4 GHz
    MG3740A-066/1662ndRF 100 kHz to 6 GHz
    Hardware Option
    Common
    MG3740A-001/101Rubidium Reference Oscillator
    MG3740A-002/102High Stability Reference Oscillator
    MG3740A-011/1112ndary HDD
    MG3740A-017/117Universal Input/Output
    MG3740A-020/120Digital Modulation
    MG3740A-021/121BER Test Function
    MG3740A-029OS Upgrade to Windows 7
    MG3740A-313Removable HDD
    Hardware Option
    For 1stRF
    MG3740A-041/141High Power Extension for 1stRF
    MG3740A-042/142Low Power Extension for 1stRF
    MG3740A-043/143Reverse Power Protection for 1stRF
    MG3740A-045/145ARB Memory Upgrade 256 Msample for 1stRF*1
    MG3740A-048/148Combination of Baseband Signal for 1stRF*1
    MG3740A-050/150Additional Analog Modulation Input for 1stRF
    Hardware Option
    For 2ndRF
    MG3740A-071/171High Power Extension for 2ndRF
    MG3740A-072/172Low Power Extension for 2ndRF
    MG3740A-073/173Reverse Power Protection for 2ndRF
    MG3740A-075/175ARB Memory Upgrade 256 Msample for 2ndRF*1
    MG3740A-078/178Combination of Baseband Signal for 2ndRF*1
    MG3740A-080/180Additional Analog Modulation Input for 2ndRF
    Software
    IQproducer*1
    MX370102ATDMA IQproducer
    MX370107AFading IQproducer
    Maintenance serviceMG3740A-ES2102 Years Extended Warranty Service
    MG3740A-ES3103 Years Extended Warranty Service
    MG3740A-ES5105 Years Extended Warranty Service
    *: MG3740A-1xx: Retrofit options.
    *1: Requires MG3740A-020/120.
