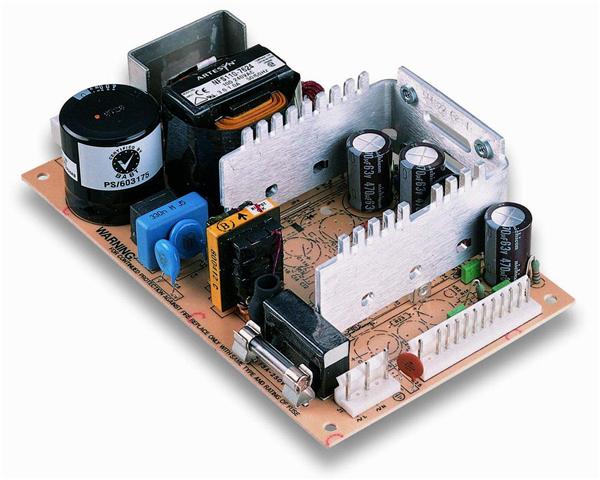

Nguồn Switching 100W 5.1 12 -12 -5 Y TẾ Artesyn NFS110-7901PJ

Width: 107.95 mm (4.25 in)

Height: 45.72 mm (1.8 in)

Length: 177.8 mm (7 in)

Industry: Medical

Efficiency: 70 %

Unit Weight: 600 g

Output Power: 110 W

Input Voltage: 90 VAC to 253 VAC, 127 VDC to 257 VDC

Cooling Method: Convection, Air-Cooled

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4 kVAC

Number of Outputs: 4 Output

Power - Convection: 80 W

Power - Forced Air: 110 W

Input Voltage - Max: 253 VAC, 357 VDC

Input Voltage - Min: 90 VAC, 127 VDC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8 A

Output Current-Channel 3: 500 mA

Output Current-Channel 4: 500 mA

Output Voltage-Channel 1: 5.1 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 12 VDC

Output Voltage-Channel 4: - 5 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
